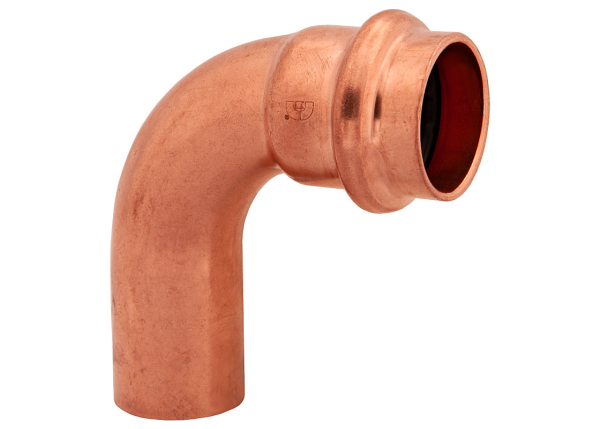

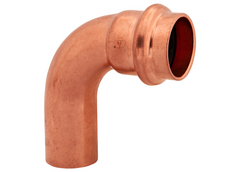

Bmi 47357 Wrot Copper Press-Fit 90 Street Elbow 1-1/4 FTGxPRESS

Product Description

The BMI 47357 is a 1-1/4 inch Wrot Copper Press-Fit 90 Street Elbow designed for reliable plumbing connections. This lead-free fitting features a 360-degree Leak Detection Design, allowing for easy identification of unpressed connections during pressure testing. It is compatible with major pressing tools and suitable for potable water, hydronic heating, and compressed air systems. The fitting ensures a permanent, leak-proof connection once properly pressed, meeting UPC/CUPC and IAPMO PS 117-2016 standards.

• Features a 360-degree Leak Detection Design for identifying unpressed connections.
• Compatible with all major brands of pressing tools for versatile use.
• Lead-free construction, complying with UPC/CUPC and IAPMO PS 117-2016 standards.

Product Highlights

Durable wrot copper press-fit elbow with leak detection for secure, lead-free plumbing installations.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47357

Technical Specifications

• Brand: BMI
• MPN: 47357
• Size: 1-1/4 inch
• Connection Type: FTGxPRESS
• Material: WROT COPPER
• Fitting Type: PRESS-FIT 90 STREET ELBOW
• Angle: 90 Degree
• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum Rating: 29.2" Mercury @ 68 F (20 C)
• Material Standard: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Standard: IAPMO PS 117-2016
• Threads Standard: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Certifications: ISO9001, ISO14001
