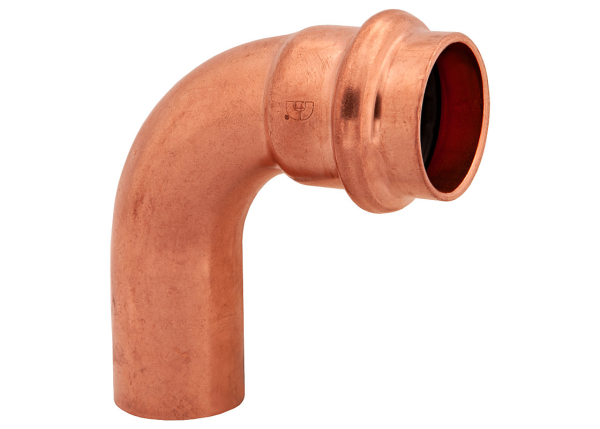

Bmi 47354 1/2 inches wrot copper press-fit FTG x P 90 degree street elbow fitting

Product Description

The BMI 47354 is a 1/2" wrot copper press-fit FTG x P 90 degree street elbow fitting designed for reliable plumbing and HVAC applications. This lead-free fitting is compatible with major pressing tools and features a 360-degree leak detection design for easy installation verification. It is suitable for potable water, hydronic heating, and compressed air systems, with a maximum working pressure of 200 psi and a working temperature range of 0 to 250 F.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

Lead-free copper fitting with leak detection for secure, long-lasting connections in various plumbing and HVAC systems.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47354

Technical Specifications

• Working Pressure: 200 psi Max.
• Maximum Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum Rating: 29.2" Mercury @ 68 F (20 C)
• Material: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Standard: IAPMO PS 117-2016
• Threads Standard: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Certifications: ISO9001, ISO14001
