Bmi 47311 3 Prf 90 Elbow Wrot CUP E 3 PRS X PRS

Product Description

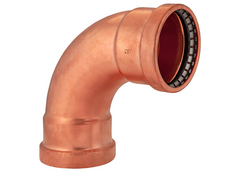

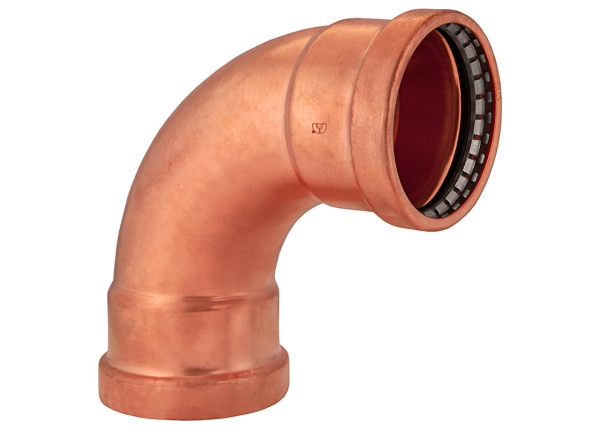

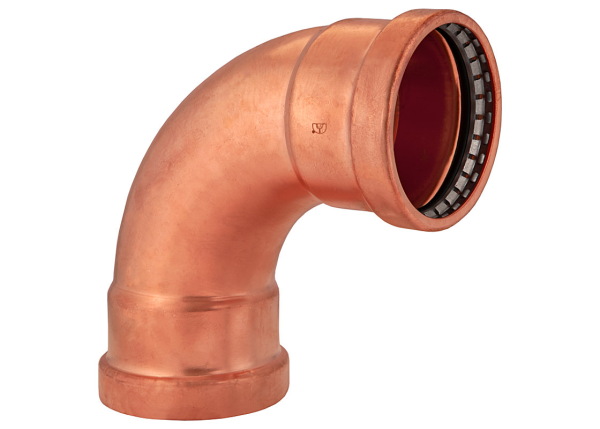

The BMI 47311 is a 3-inch Wrot Copper Press-Fit 90 Degree Elbow Fitting. This fitting is designed for various applications including potable water, hydronic heating, chilled water, compressed air up to 200 psi, non-medical gases up to 140 psi, and low-pressure steam up to 15 psi. It features a 360-degree leak detection design for easy identification of unpressed connections during pressure testing. The lead-free fitting complies with UPC/CUPC and IAPMO PS 117-2016 standards.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design
• Lead-Free and complies with UPC/CUPC and IAPMO PS 117-2016 standards

Product Highlights

Wrot copper press-fit 90-degree elbow with leak detection, suitable for multiple fluid and gas applications.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47311

Technical Specifications

• Manufacturer: BMI
• MPN: 47311
• Alternate Part Number: CUP E 3 PRS X PRS
• Item Number: CUP E 3 PRS
• Unit of Measure: EA
• Working Pressure: 200 psi Max.
• Maximum Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum Rating: 29.2" Mercury @ 68 F (20 C)
• Material Composition: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Standard: IAPMO PS 117-2016
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Certifications: ISO9001, ISO14001
• End Style: Press-Fit
• Fitting Type: 90 deg Elbow
• Material: Wrot Copper
• Nominal Size: 3 in
