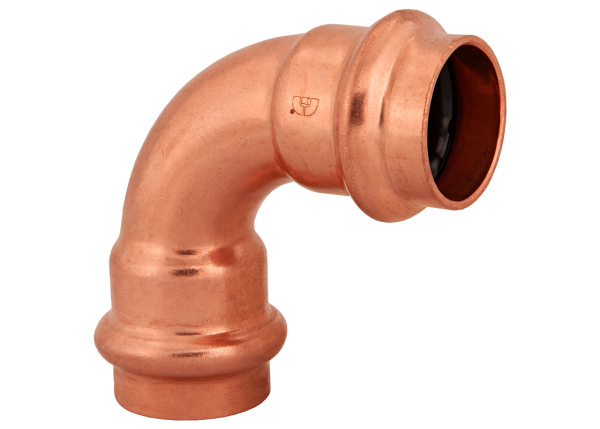

Bmi 47309 2 inch wrot copper press-fit 90 degree elbow fitting

Product Description

The BMI 47309 Wrot Copper Press-Fit 90 Degree Elbow Fitting is a 2-inch component designed for plumbing and HVAC applications. It features a 360-degree Leak Detection Design, allowing for identification of unpressed connections during pressure testing, ensuring a leak-proof seal upon proper pressing. Compatible with major pressing tools, this fitting is suitable for potable water, hydronic heating, chilled water, compressed air up to 200 psi, non-medical gases up to 140 psi, and low-pressure steam up to 15 psi. It is constructed from ASME/ASTM B42 C12200 copper.

• Compatible with all major brands of pressing tools.
• Features a 360-degree Leak Detection Design for unpressed connections.
• Suitable for potable water, hydronic heating, compressed air, and low-pressure steam.

Product Highlights

Lead-free copper fitting with leak detection, ideal for diverse plumbing and HVAC applications.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47309

Technical Specifications

• Working Pressure: 200 psi Max.
• Maximum Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Operating Temperature: 0 to 250 F (-18 to 121 C)
• Vacuum Rating: 29.2 inches Mercury @ 68 F (20 C)
• Material: ASME/ASTM B42 C12200 (99.9% copper)
• Dimensions Compliance Standard: IAPMO PS 117-2016
• Drinking Water Compliance Standard: NSF/ANSI STANDARD 61 - 372 (Lead free)
