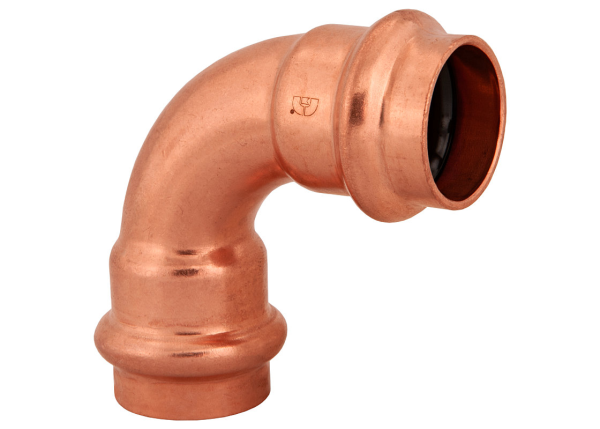

Bmi 47308 Wrot Copper Press-Fit 90 Degree Elbow Fitting 1-1/2 inches 90 Degree

Product Description

The BMI 47308 Wrot Copper Press-Fit 90 Degree Elbow Fitting is designed for reliable plumbing and HVAC applications. This lead-free fitting ensures a secure 90-degree connection for copper tubing, compatible with major pressing tools. It features a 360-degree leak detection design for easy identification of unpressed connections during system pressure testing. Suitable for potable water, hydronic heating, chilled water, compressed air up to 200 psi, non-medical gases up to 140 psi, and low-pressure steam up to 15 psi.

• Lead-Free construction and UPC/CUPC, IAPMO PS 117-2016 compliant for safe use.
• Compatible with all major brands of pressing tools for versatile installation.
• Features a 360 Degree Leak Detection Design for quick identification of unpressed connections.

Product Highlights

Durable wrot copper press-fit elbow with leak detection for secure, compliant plumbing and HVAC connections.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47308

Technical Specifications

• Working Pressure: 200 psi Max.
• Maximum Test Pressure: 600 psi Max.
• Low Pressure Steam Rating: 15 psi Max.
• Operating Temperature Range: 0~250 F (-18~121 C)
• Vacuum Rating: 29.2" Mercury @ 68 F (20 C)
• Material Type: Wrot Copper
• Material Composition Standard: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Compliance Standard: IAPMO PS 117-2016
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other Compliance Standards: ISO9001, ISO14001
• Size: 1-1/2 inch
• Fitting Type: Press-Fit 90 Degree Elbow
