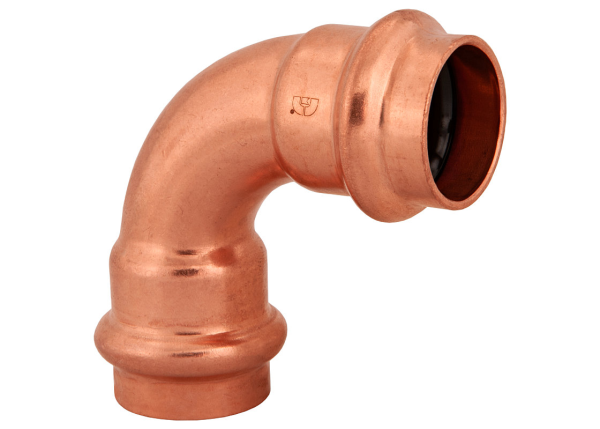

Bmi 47307 1-1/4 inches wrot copper press-fit 90 degree elbow fitting

Product Description

The BMI 47307 is a 1-1/4" Wrot Copper Press-Fit 90 Degree Elbow Fitting designed for various plumbing applications. This lead-free fitting ensures a secure, permanent connection for potable water, hydronic heating, chilled water, compressed air (up to 200 psi), non-medical gases (up to 140 psi), and low-pressure steam (up to 15 psi). It operates within a working temperature range of 0 to 250 F (-18 to 121 C) and is compatible with all major brands of pressing tools.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

Features a 360-degree leak detection design for easy identification of unpressed connections during pressure testing, ensuring a reliable, permanent seal.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47307

Technical Specifications

• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum: 29.2" Mercury @ 68 F (20 C)
• Material: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Standard: IAPMO PS 117-2016
• Threads Standard: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other Compliance: ISO9001, ISO14001
• Item Number: CUP E 1-1/4 PRS
• Alternate Part Number: CUP E 1-1/4 PRS X PRS, CUP E SR 1-1/4 PRS X PRS
• Size: 1-1/4
• Connection Type: PRESSxPRESS
• Type: 90 ELBOW
