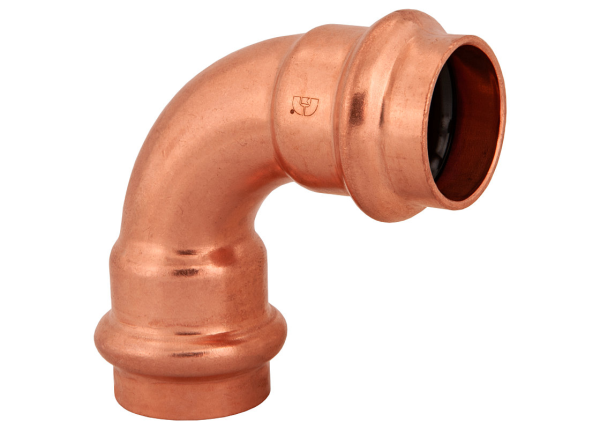

Bmi 47306 1 inches wrot copper press-fit 90 degree elbow fitting

Product Description

The BMI 47306 is a 1" wrot copper press-fit 90 degree elbow fitting designed for various plumbing and HVAC applications. This lead-free fitting is compatible with major pressing tools and features a 360-degree leak detection design for identifying unpressed connections. It supports potable water, hydronic heating, chilled water, compressed air up to 200 psi, non-medical gases, and low-pressure steam up to 15 psi, with a working temperature range of 0 to 250 F.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design for unpressed connections
• Lead-Free construction for drinking water compliance

Product Highlights

Durable wrot copper fitting for reliable, leak-proof connections in diverse systems.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47306

Technical Specifications

• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum: 29.2" Mercury @ 68 F (20 C)
• Material Compliance: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Compliance: IAPMO PS 117-2016
• Threads Compliance: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other Certifications: ISO9001, ISO14001, UPC/CUPC
• End Style: Press-Fit
• Fitting Type: 90 deg Elbow
• Material: Wrot Copper
• Nominal Size: 1 in
