Bmi 47305 press sr 90 ell 3/4

Product Description

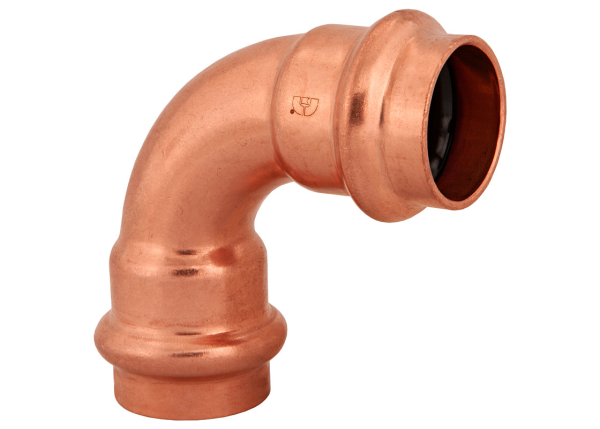

The BMI 47305 is a 3/4 inch wrot copper press-fit 90-degree elbow fitting. It is designed for various applications including potable water, hydronic heating with glycol, chilled water, and compressed air up to 200 psi. This fitting features a leak detection design for identifying unpressed connections during pressure testing, ensuring a secure, permanent connection when properly installed. It is compatible with ASME/ASTM B88 standard K, L, and M hard copper tubing.

• 90-degree elbow for directional changes in piping.
• Press fitting design for quick and secure connections.
• 3/4 inch size for standard copper tubing applications.

Product Highlights

Features a 360-degree leak detection design and is lead-free for safe potable water applications.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47305

Technical Specifications

• Item Number: CUP E 3/4 PRS
• Alternate Part Numbers: CUP E 3/4 PRS X PRS, CUP E SR 3/4 PRS X PRS, CUP X 3/4 PRS X PRS, LF823
• Working Pressure: 200 psi Max.
• Maximum Test Pressure: 600 psi Max.
• Low Pressure Steam Rating: 15 psi Max.
• Working Temperature: 0 to 250 F (-18 to 121 C)
• Vacuum Rating: 29.2 inches Mercury at 68 F (20 C)
• Material: Wrot Copper
• Material Standard: ASME/ASTM B42 C12200 (99.9% copper)
• Dimensions Standard: IAPMO PS 117-2016
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• End Style: Press-Fit
• Fitting Type: 90 degree Elbow
• Nominal Size: 3/4 inch
• Connection Type: Press x Press
• Additional Part Number: 4757302
