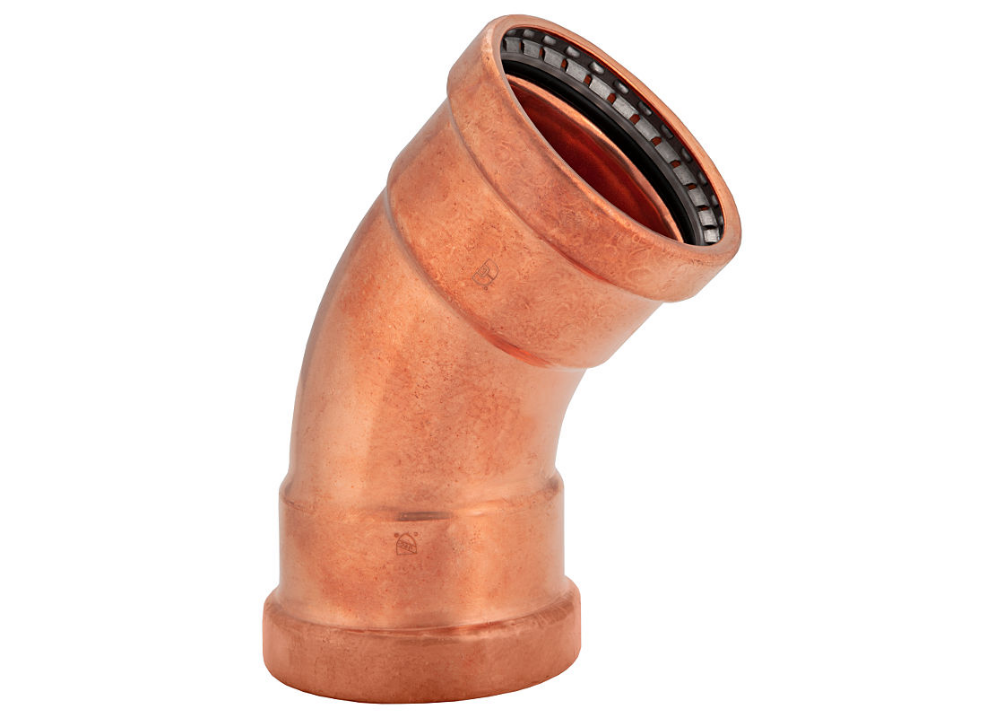

Bmi 47209 2 PressxPress Wrot Copper Press-Fit 45 Degree Elbow

Product Description

The BMI 47209 is a 2 PressxPress Wrot Copper Press-Fit 45 Degree Elbow. This fitting is designed for various applications including potable water, hydronic heating, chilled water, compressed air, non-medical gases, and low pressure steam. It features a maximum working pressure of 200 psi and an operating temperature range of 0 to 250 F (-18 to 121 C). The wrot copper construction ensures durability for plumbing and HVAC systems.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

Lead-Free design with 360 Degree Leak Detection, compliant with UPC/CUPC and IAPMO PS 117-2016 standards.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47209

Technical Specifications

• Brand: BMI
• MPN: 47209
• Type: Elbow
• Material: ASME/ASTM B42 C12200 (99.9% cu)
• Connection Type: Press-Fit
• Angle: 45 Degree
• Size: 2 PRESSxPRESS
• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum: 29.2" Mercury @ 68 F (20 C)
• Dimensions Standard: IAPMO PS 117-2016
• Threads Standard: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other Compliance: ISO9001, ISO14001
