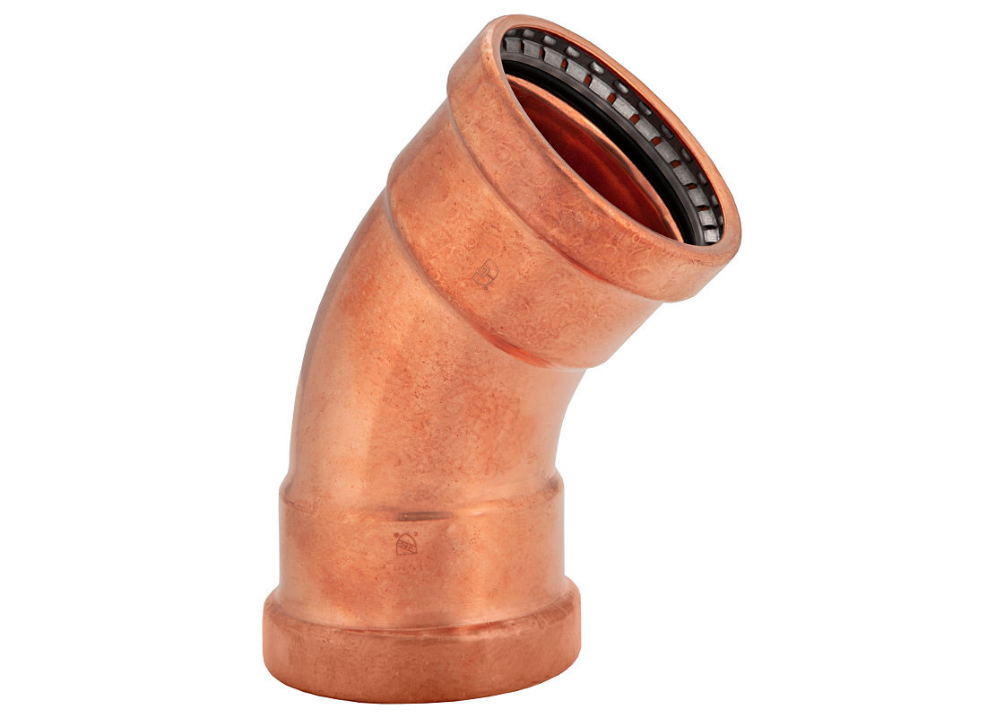

Bmi 47208 Press x Press Wrought Copper Press-Fit Elbow 1-1/2 45 Degree

Product Description

This BMI 47208 is a 1-1/2 inch Press x Press Wrought Copper Press-Fit 45 Degree Elbow. Designed for press-fit plumbing applications, it provides a durable solution for directional changes in piping systems. Constructed from wrought copper, this fitting ensures reliable performance in various installations, including potable water and hydronic heating systems. It is compatible with major pressing tools and features a leak detection design for secure connections.

• Designed for press-fit plumbing systems
• Made from durable wrought copper
• Features a 360 Degree Leak Detection Design

Product Highlights

Durable wrought copper 45-degree elbow for reliable press-fit plumbing connections.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47208

Technical Specifications

• Size: 1-1/2 inch
• Connection Type: Press x Press
• Material: Wrought Copper
• Fitting Type: 45 Degree Elbow
• Application: Press-Fit
• Maximum Working Pressure: 200 psi
• Maximum Test Pressure: 600 psi
• Maximum Low Pressure Steam: 15 psi
• Working Temperature Range: 0~250 F (-18~121 C)
• Vacuum Rating: 29.2" Mercury @ 68 F (20 C)
• Material Standard: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Compliance Standard: IAPMO PS 117-2016
• Drinking Water Compliance Standard: NSF/ANSI STANDARD 61 - 372 (Lead free)
