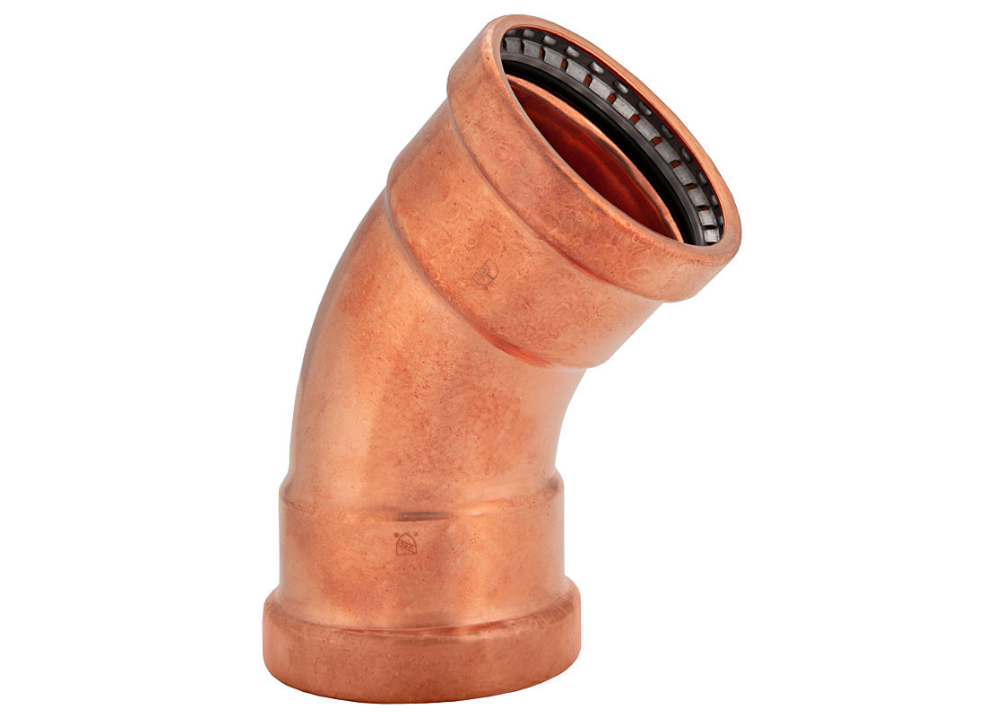

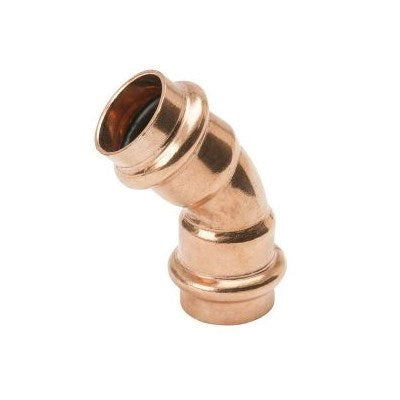

Bmi 47207 1-1/4 pressxpress wrot copper press-fit 45 elbow

Product Description

The BMI 47207 Wrot Copper Press-Fit 45 Degree Elbow Fitting is designed for reliable plumbing connections. This lead-free fitting is compatible with all major pressing tools and features a 360-degree leak detection design for easy identification of unpressed connections during pressure testing. It is suitable for potable water, hydronic heating, chilled water, compressed air up to 200 psi, non-medical gases up to 140 psi, and low-pressure steam up to 15 psi. The fitting operates within a working temperature range of 0 to 250 F.

• 360 Degree Leak Detection Design for quick identification of unpressed connections.
• Lead-Free construction, compliant with NSF/ANSI STANDARD 61 - 372 for drinking water.
• Compatible with all major brands of pressing tools for versatile installation.

Product Highlights

Durable wrot copper press-fit elbow with leak detection for secure, permanent connections in various plumbing and HVAC applications.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47207
• Country of Origin: USA

Technical Specifications

• Working Pressure: 200 psi Max
• Max Test Pressure: 600 psi Max
• Low Pressure Steam: 15 psi Max
• Working Temperature: 0 to 250 F (-18 to 121 C)
• Vacuum: 29.2 inches Mercury @ 68 F (20 C)
• Material: ASME/ASTM B42 C12200 (99.9% copper)
• Dimensions Compliance: IAPMO PS 117-2016
• Threads Standard: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead Free)
• Other Compliance: ISO9001, ISO14001
• Size: 1-1/4 inch
• Angle: 45 Degree
