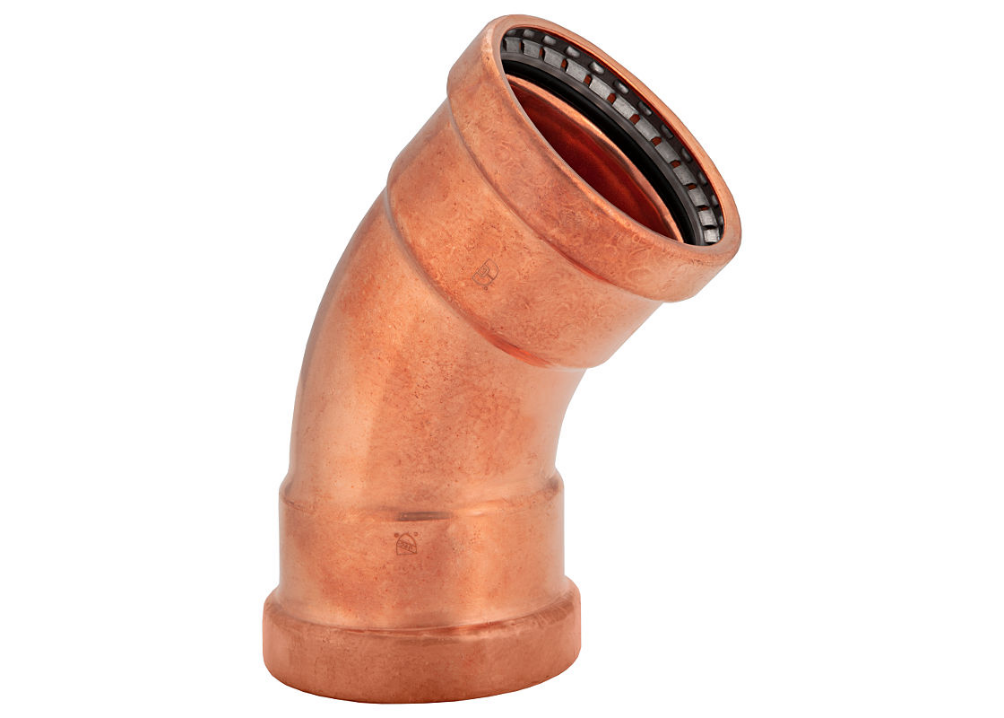

Bmi 47206 1 inch pressxpress wrot copper press-fit 45 degree elbow

Product Description

The BMI 47206 is a 1 inch Pressxpress Wrot Copper Press-Fit 45 Degree Elbow. This fitting is designed for press-fit applications in copper piping systems, made from wrot copper, and features a 45-degree angle for directional changes. It is compatible with major pressing tools and includes a 360 Degree Leak Detection Design. The fitting is Lead-Free and complies with UPC / CUPC and IAPMO PS 117-2016 standards, suitable for potable water, hydronic heating, chilled water, compressed air, non-medical gases, and low pressure steam applications.

• Designed for press-fit applications in copper piping systems.
• Made from durable wrot copper with a 45-degree elbow for directional changes.
• Features a 360 Degree Leak Detection Design and is Lead-Free.

Product Highlights

This wrot copper press-fit elbow offers a 45-degree angle, leak detection, and lead-free compliance for various piping systems.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47206

Technical Specifications

• Size: 1 inch
• Material: Wrot Copper
• Connection Type: Press-Fit
• Fitting Type: Elbow
• Angle: 45 degrees
• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum: 29.2 inches Mercury @ 68 F (20 C)
• Material Composition: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Standard: IAPMO PS 117-2016
• Threads Standard: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
