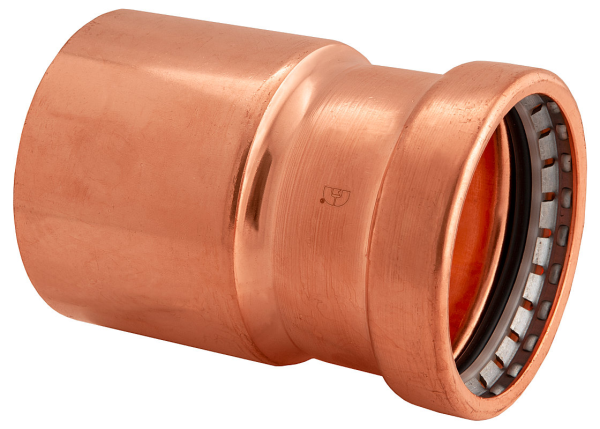

Bmi 47148 Wrot Copper Press-Fit FTG x P Bushing Fitting 2-1/2 inches x 1-1/4 inches

Product Description

The BMI 47148 Wrot Copper Press-Fit FTG x P Bushing Fitting is designed for various applications including potable water, hydronic heating with glycol, chilled water, compressed air (200 psi max), non-medical gases (140 psi max), and low pressure steam (15 psi max). This fitting features a 360 Degree Leak Detection Design for identifying unpressed connections during pressure testing. It ensures a leak-proof, permanent connection when pressed correctly, suitable for ASME/ASTM B88 standard K, L, and M hard copper tubing.

• Compatible with all major brands pressing tools.
• 360 Degree Leak Detection Design for unpressed connections.

Product Highlights

Lead-free, UPC/CUPC compliant, and ISO9001/ISO14001 compliant for quality assurance.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47148
• Country of Origin: USA

Technical Specifications

• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum Rating: 29.2" Mercury @ 68 F (20 C)
• Material: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Compliance: IAPMO PS 117-2016
• Threads Compliance: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other Compliance: ISO9001, ISO14001
