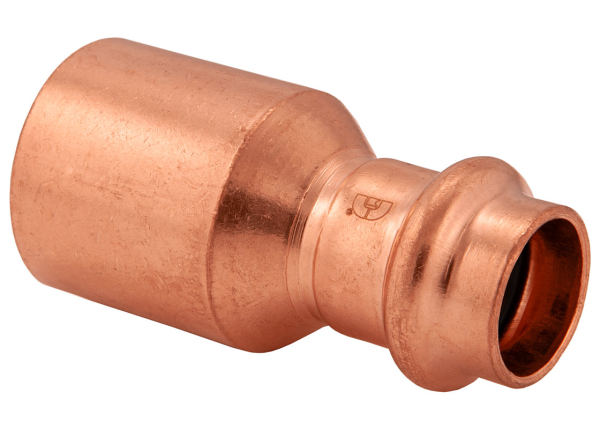

Bmi 47136 wrot copper press-fit ftg x p bushing fitting 1-1/2 inches x 1 inches

Product Description

The BMI 47136 Wrot Copper Press-Fit FTG x P Bushing Fitting is designed for diverse applications including potable water, hydronic heating, chilled water, compressed air up to 200 psi, non-medical gases up to 140 psi, and low pressure steam up to 15 psi. This lead-free fitting features a 360 Degree Leak Detection Design, aiding in identifying unpressed connections during pressure testing to ensure a secure, permanent seal. It is compatible with major pressing tools and meets UPC/CUPC and IAPMO PS 117-2016 standards.

• Compatible with all major brands of pressing tools for versatile use.
• Incorporates a 360 Degree Leak Detection Design for identifying unpressed connections.

Product Highlights

Lead-free copper press-fit bushing fitting with 360-degree leak detection, suitable for various fluid and gas applications.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47136

Technical Specifications

• Working Pressure: 200 psi Max.
• Maximum Test Pressure: 600 psi Max.
• Low Pressure Steam Rating: 15 psi Max.
• Operating Temperature Range: 0 to 250 F (-18 to 121 C)
• Vacuum Rating: 29.2" Mercury @ 68 F (20 C)
• Material Compliance Standard: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Compliance Standard: IAPMO PS 117-2016
• Threads Compliance Standard: ASME/ASTM B1.20.1
• Drinking Water Compliance Standard: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Connection Type: Fitting x Press
• Fitting Group: Press Fittings
• Size: 1-1/2 x 1 inch
• Fitting Type: Fitting Reducer
