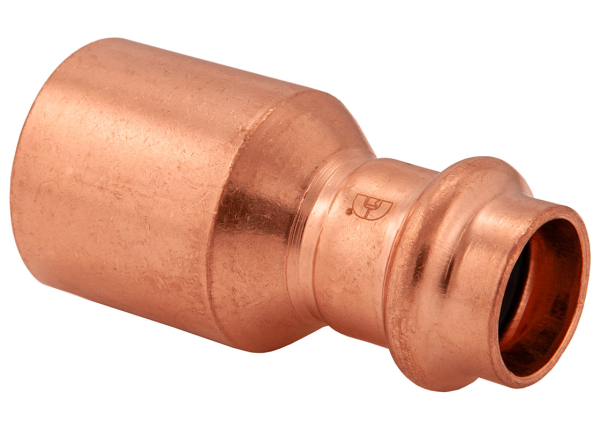

Bmi 47135 1-1/2x1-1/4 FTGxPRESS Wrot Copper Press-Fit Bushing

Product Description

The BMI 47135 is a 1-1/2x1-1/4 FTGxPRESS Wrot Copper Press-Fit Bushing, designed for various plumbing applications. This copper tube fitting is compatible with major pressing tools and features a leak detection design for unpressed connections. It is suitable for potable water, hydronic heating, chilled water, compressed air up to 200 psi, non-medical gases up to 140 psi, and low-pressure steam up to 15 psi. The bushing is lead-free and complies with UPC/CUPC and IAPMO PS 117-2016 standards.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

Lead-free copper press-fit bushing with leak detection, suitable for multiple fluid applications.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47135

Technical Specifications

• Category: Copper Tube Fittings
• Size: 1-1/2x1-1/4
• Product Type: Bushing
• Part Number: 1920339
• Fitting Type: FTGxPRESS Wrot Copper Press-Fit
• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam Pressure: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum Rating: 29.2" Mercury @ 68 F (20 C)
• Materials Compliance: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Compliance: IAPMO PS 117-2016
• Threads Compliance: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other Compliance: ISO9001, ISO14001
