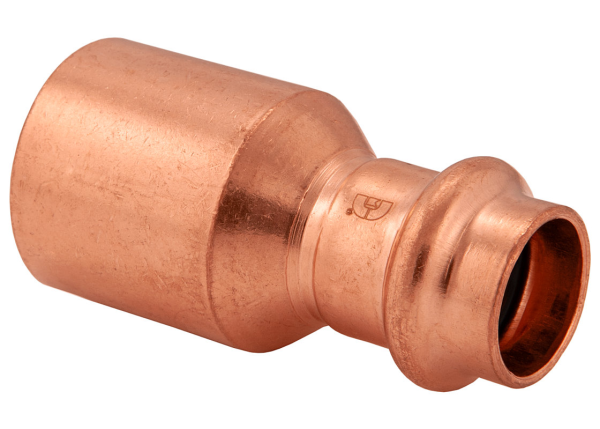

Bmi 47132 press ftg reducer 1-1/4 inches x 3/4 inches

Product Description

The BMI 47132 is a Press Fitting Reducer designed for secure connections in various systems. This wrot copper fitting, with a size of 1-1/4 inches by 3/4 inches, facilitates pipe diameter reduction. It is compatible with standard pressing tools and features a 360-degree leak detection design. Suitable for potable water, hydronic heating, and compressed air applications, it ensures a permanent, leak-proof connection with a maximum working pressure of 200 psi.

• Fitting x Press connection for reliable installation.
• Designed as a reducer with a 1-1/4 x 3/4 inch size.
• Features a 360-degree leak detection design for unpressed connections.

Product Highlights

Lead-free wrot copper construction, compatible with major pressing tools, and certified to UPC/CUPC and IAPMO PS 117-2016 standards.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47132

Technical Specifications

• Connection Type: Fitting x Press
• Fitting Group: Press Fittings
• Size: 1-1/4 x 3/4 inches
• Fitting Type: Reducer
• Working Pressure: 200 psi Max
• Maximum Test Pressure: 600 psi Max
• Low Pressure Steam: 15 psi Max
• Working Temperature: 0 to 250 F (-18 to 121 C)
• Vacuum Rating: 29.2 inches Mercury @ 68 F (20 C)
• Material: ASME/ASTM B42 C12200 (99.9% copper)
• Dimensions Standard: IAPMO PS 117-2016
• Threads Standard: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other Compliance: ISO9001, ISO14001
