Bmi 47128 1X1/2 FTGxPRESS Wrot Copper Press-Fit Bushing

Product Description

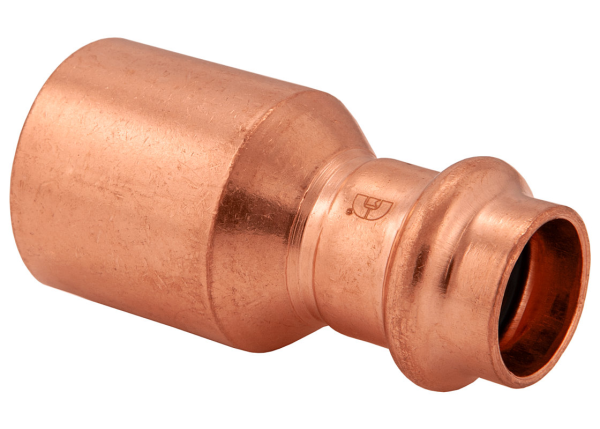

The BMI 47128 Wrot Copper Press-Fit Bushing is a lead-free fitting designed for various plumbing and HVAC applications. It features a 360-degree Leak Detection Design to identify unpressed connections during pressure testing, ensuring a secure, permanent seal once pressed. Compatible with all major pressing tools, this bushing is suitable for potable water, hydronic heating, chilled water, compressed air (200 psi max), non-medical gases (140 psi max), and low-pressure steam (15 psi max) systems. It complies with UPC/CUPC and IAPMO PS 117-2016 standards.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

Lead-free copper press-fit bushing with leak detection, suitable for potable water and various HVAC applications.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47128

Technical Specifications

• Working Pressure: 200 psi Max
• Max Test Pressure: 600 psi Max
• Low Pressure Steam: 15 psi Max
• Working Temperature: 0 to 250 F (-18 to 121 C)
• Vacuum Rating: 29.2 inches Mercury at 68 F (20 C)
• Material: ASME/ASTM B42 C12200 (99.9% Copper)
• Dimensions Standard: IAPMO PS 117-2016
• Threads Standard: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI Standard 61-372 (Lead-Free)
