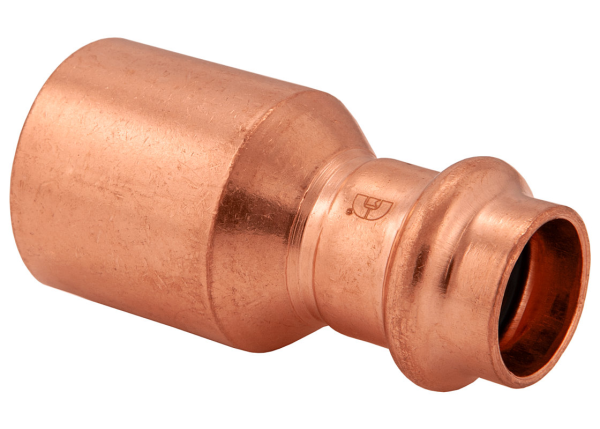

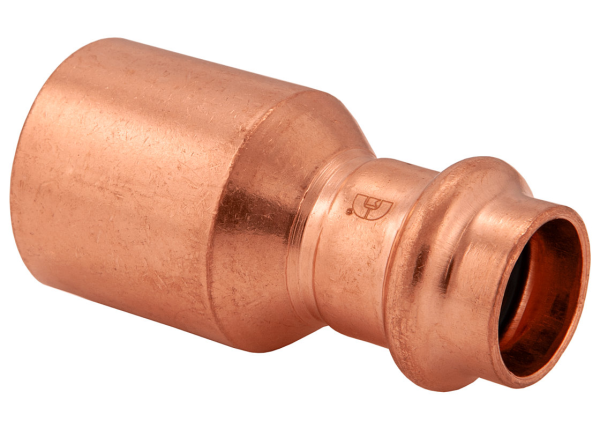

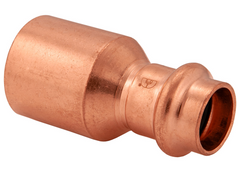

Bmi 47123 3/4 inches x 1/2 inches wrot copper press-fit FTG x P bushing fitting

Product Description

The BMI 47123 Wrot Copper Press-Fit FTG x P Bushing Fitting is designed for diverse applications including potable water, hydronic heating, chilled water, and compressed air systems up to 200 psi. This lead-free fitting ensures a leak-proof, permanent connection when properly installed, featuring a 360-degree Leak Detection Design for easy identification of unpressed connections during pressure testing. It is compliant with UPC/CUPC and IAPMO PS 117-2016 standards, suitable for ASME/ASTM B88 standard K, L, and M hard copper tubing. It operates within a working temperature range of 0 to 250 F.

• Compatible with all major brands pressing tools
• Features a 360 Degree Leak Detection Design
• Lead-Free and compliant with UPC/CUPC and IAPMO PS 117-2016 standards

Product Highlights

Lead-free wrot copper press-fit bushing with 360-degree leak detection for reliable, permanent connections in various plumbing and HVAC systems.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47123

Technical Specifications

• Working Pressure: 200 psi Max.
• Maximum Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum Rating: 29.2" Mercury @ 68 F (20 C)
• Material: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Standard: IAPMO PS 117-2016
• Threads Standard: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Certifications: ISO9001, ISO14001
• Category: Copper Tube Fittings
• Schedule/Class: OTHER
• Product Type: Bushing
• Size: 3/4x1/2
• Part Number: 4839079
• Angle: OTHER
