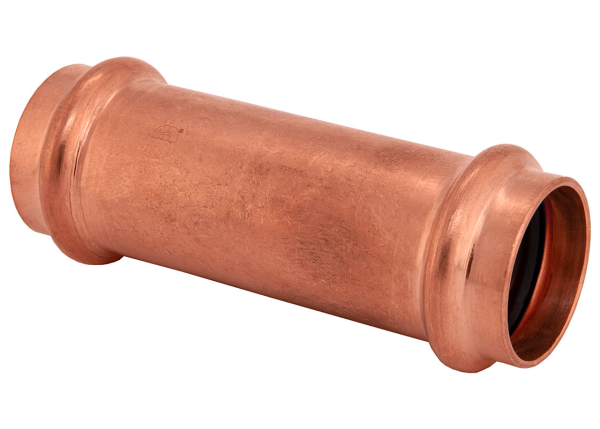

Bmi 47087 1-1/4 inches wrot copper press-fit long repair coupling fitting

Product Description

The BMI 47087 Wrot Copper Press-Fit Long Repair Coupling Fitting is designed for diverse applications including potable water, hydronic heating, chilled water, compressed air up to 200 psi, non-medical gases up to 140 psi, and low pressure steam up to 15 psi. This lead-free fitting features a 360-degree Leak Detection Design, aiding in identifying unpressed connections during pressure testing to ensure a permanent, leak-proof seal. It is compatible with all major pressing tools.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

Lead-free copper press-fit coupling with leak detection for reliable, permanent connections in various plumbing and HVAC systems.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47087

Technical Specifications

• Available Sizes: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
• Maximum Working Pressure: 200 psi Max.
• Maximum Test Pressure: 600 psi Max.
• Maximum Low Pressure Steam Pressure: 15 psi Max.
• Operating Temperature Range: 0~250 F (-18~121 C)
• Maximum Vacuum: 29.2" Mercury @ 68 F (20 C)
• Material Composition: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Compliance Standard: IAPMO PS 117-2016
• Drinking Water Compliance Standard: NSF/ANSI STANDARD 61 - 372 (Lead free)
