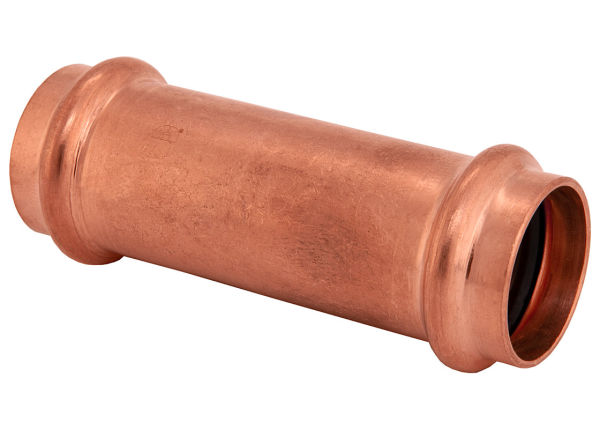

Bmi 47086 1 inches wrot copper press-fit long repair coupling fitting

Product Description

The BMI 47086 is a 1" Wrot Copper Press-Fit Long Repair Coupling Fitting designed for various applications including potable water, hydronic heating with glycol, chilled water, compressed air up to 200 psi, non-medical gases up to 140 psi, and low pressure steam up to 15 psi. It features a 360 Degree Leak Detection Design for easy identification of unpressed connections during pressure testing, ensuring a secure, leak-proof connection when properly pressed. This lead-free fitting is compatible with all major pressing tools.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design
• Suitable for potable water, hydronic heating (w/Glycol), chilled water, compressed air, non-medical gases, and low pressure steam applications

Product Highlights

Lead-free copper press-fit coupling with 360-degree leak detection for diverse plumbing and HVAC applications.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47086

Technical Specifications

• Working Pressure: 200 psi Max.
• Maximum Test Pressure: 600 psi Max.
• Low Pressure Steam Rating: 15 psi Max.
• Working Temperature Range: 0~250 F (-18~121 C)
• Vacuum Rating: 29.2" Mercury @ 68 F (20 C)
• Material: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Compliance Standard: IAPMO PS 117-2016
• Threads Standard: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other Compliance Standards: ISO9001, ISO14001
