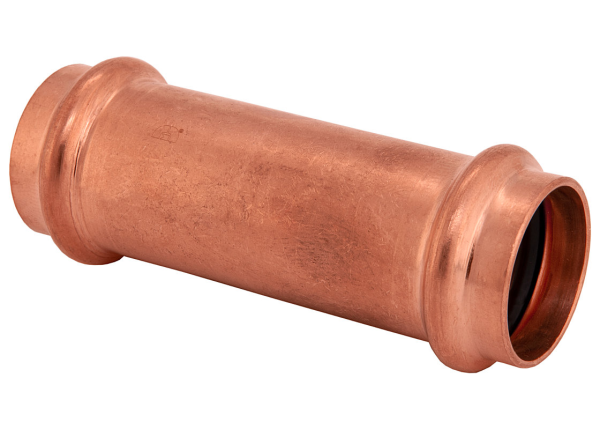

Bmi 47084 Wrot Copper Press-Fit Long Repair Coupling Fitting 1/2 Inch

Product Description

The BMI 47084 Wrot Copper Press-Fit Long Repair Coupling Fitting is engineered for reliable, leak-proof connections in various plumbing and HVAC systems. This lead-free 1/2 inch coupling complies with UPC/CUPC and IAPMO PS 117-2016 standards, making it suitable for potable water, hydronic heating, chilled water, and compressed air applications up to 200 psi. It supports a maximum test pressure of 600 psi and operates within a temperature range of 0 to 250 degrees F.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design for unpressed connection identification
• Lead-Free and compliant with UPC/CUPC and IAPMO PS 117-2016 standards

Product Highlights

Features a 360-degree leak detection design for easy identification of unpressed connections

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47084

Technical Specifications

• Brand: BMI
• MPN: 47084
• Product Type: PRF Repair Coupling
• Fitting/Connector Type: Coupling
• Material: Copper
• Material/Construction: Wrot
• Size: 1/2 inch
• Available Product Sizes: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum: 29.2" Mercury @ 68 F (20 C)
• Materials Compliance: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Compliance: IAPMO PS 117-2016
• Threads Compliance: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other Compliance: ISO9001, ISO14001
• Alternative Part Number: CUP CPL 1/2 PRS X PRS W/O STOP EXTENDED
