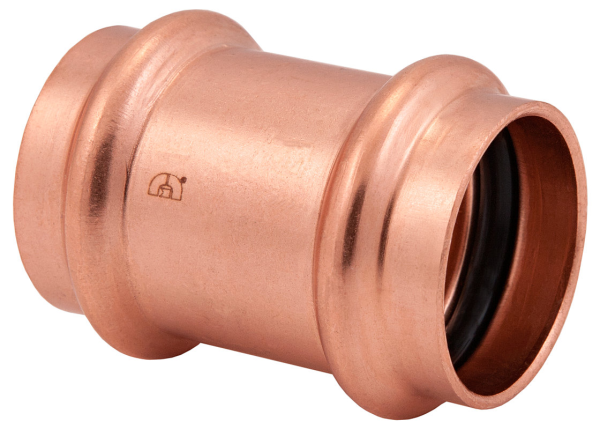

Bmi 47079 2 inch Wrot Copper Press-Fit No Stop Coupling Fitting

Product Description

The BMI 47079 Wrot Copper Press-Fit No Stop Coupling Fitting is designed for secure, lead-free plumbing connections. This 2-inch fitting is compatible with major pressing tools and features a 360-degree Leak Detection Design for easy identification of unpressed connections during system pressure testing. It supports applications like potable water, hydronic heating, chilled water, compressed air up to 200 psi, and low-pressure steam up to 15 psi, with a working temperature range of 0 to 250 F.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design for unpressed connection identification
• Lead-Free and meets UPC/CUPC, IAPMO PS 117-2016 standards

Product Highlights

Ensures secure, leak-proof copper connections with easy unpressed detection and broad application compatibility.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47079

Technical Specifications

• Working Pressure: 200 psi Max.
• Maximum Test Pressure: 600 psi Max.
• Low Pressure Steam Limit: 15 psi Max.
• Operating Temperature: 0 to 250 F (-18 to 121 C)
• Vacuum Rating: 29.2 inches Mercury @ 68 F (20 C)
• Material Compliance: ASME/ASTM B42 C12200 (99.9% copper)
• Dimensions Compliance Standard: IAPMO PS 117-2016
• Drinking Water Compliance Standard: NSF/ANSI STANDARD 61 - 372 (Lead free)
