Bmi 47078 wrot copper press-fit no stop coupling fitting 1-1/2 inches

Product Description

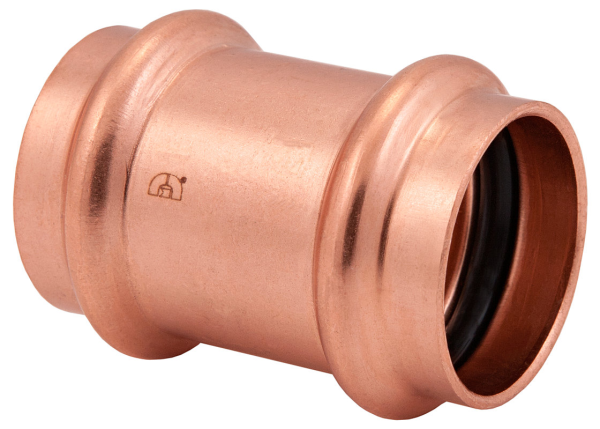

The BMI 47078 is a 1-1/2" Wrot Copper Press-Fit No Stop Coupling Fitting, designed for secure and efficient plumbing connections. This lead-free copper coupling is compatible with all major pressing tools and features a 360-degree leak detection design, simplifying installation and pressure testing. It operates within a 0 to 250 F temperature range and handles up to 200 psi working pressure, making it ideal for potable water, hydronic heating, chilled water, compressed air, and low-pressure steam systems.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

Lead-free copper coupling with leak detection for secure, versatile plumbing connections.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47078

Technical Specifications

• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum: 29.2" Mercury @ 68 F (20 C)
• Materials: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Compliance: IAPMO PS 117-2016
• Threads: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other Compliance: ISO9001, ISO14001
