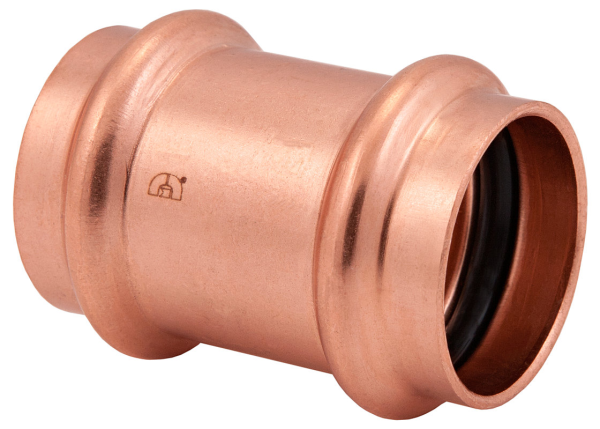

Bmi 47077 1-1/4 inches Wrot Copper Press-Fit No Stop Coupling Fitting

Product Description

The BMI 47077 1-1/4" Wrot Copper Press-Fit No Stop Coupling Fitting is designed for secure plumbing connections. This lead-free fitting is compatible with major pressing tools and features a 360-degree leak detection design for unpressed connections. It is suitable for potable water, hydronic heating, chilled water, compressed air up to 200 psi, non-medical gases up to 140 psi, and low-pressure steam up to 15 psi. It complies with UPC/CUPC and IAPMO PS 117-2016 standards.

• Compatible with all major brands of pressing tools.
• Features a 360-degree leak detection design.

Product Highlights

Leak detection design allows for quick identification of unpressed connections during system pressure testing.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47077

Technical Specifications

• Working Pressure: 200 psi Max.
• Maximum Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum: 29.2" Mercury @ 68 F (20 C)
• Material Compliance: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Standard: IAPMO PS 117-2016
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Size: 1-1/4 inch
