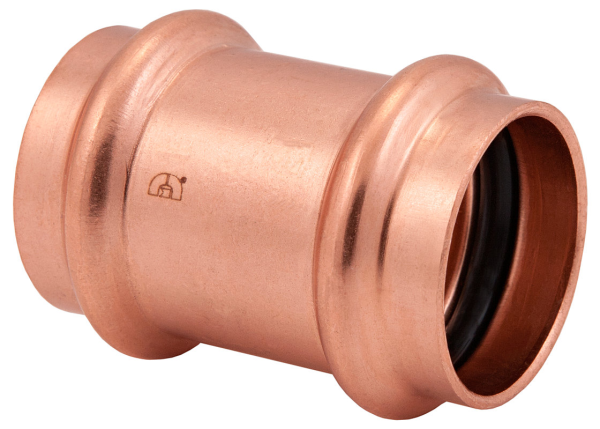

Bmi 47076 1 pressxpress wrot copper press-fit slip coupling

Product Description

The BMI 47076 1 PressxPress Wrot Copper Press-Fit Slip Coupling is designed for reliable plumbing and HVAC applications. This lead-free fitting features a 360-degree Leak Detection Design for easy identification of unpressed connections during pressure testing. It is compatible with all major brands of pressing tools and suitable for potable water, hydronic heating, and compressed air systems, with a working pressure up to 200 psi and temperature range of 0 to 250 F.

• Press-fit connection for quick and secure installation
• Durable wrot copper construction ensures longevity
• Slip coupling design for versatile application
• 360-degree Leak Detection Design for unpressed connections
• Compatible with all major brands of pressing tools

Product Highlights

Lead-free wrot copper press-fit slip coupling with 360-degree leak detection, compatible with major pressing tools.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47076

Technical Specifications

• Size: 1
• Connection Type: PressxPress
• Material: Wrot Copper
• Product Type: Press-Fit Slip Coupling
• Working Pressure: 200 psi Max
• Max Test Pressure: 600 psi Max
• Low Pressure Steam: 15 psi Max
• Working Temperature: 0 to 250 F (-18 to 121 C)
• Vacuum: 29.2 inches Mercury at 68 F (20 C)
• Materials Compliance: ASME/ASTM B42 C12200 (99.9% copper)
• Dimensions Compliance: IAPMO PS 117-2016
• Threads Compliance: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI Standard 61 - 372 (Lead-Free)
• Other Compliance: ISO9001, ISO14001
