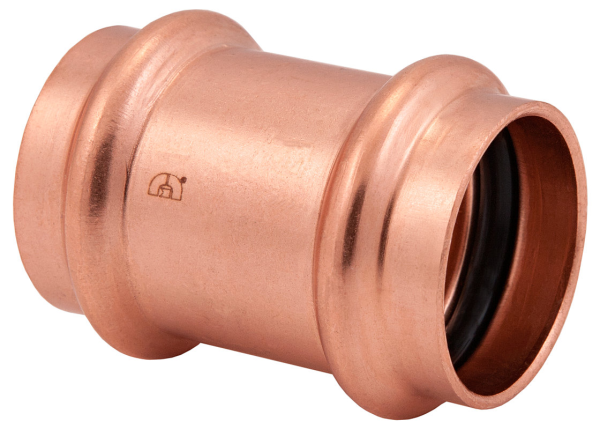

Bmi 47075 3/4 inch Wrot Copper Press-Fit No Stop Coupling Fitting

Product Description

The BMI 47075 is a 3/4" Wrot Copper Press-Fit No Stop Coupling Fitting, suitable for potable water, hydronic heating, chilled water, compressed air (200 psi max), non-medical gases (140 psi max), and low-pressure steam (15 psi max). This fitting is compatible with ASME/ASTM B88 standard copper tubing. It incorporates a Leak Detection Design, which facilitates quick identification of unpressed connections during system pressure testing, ensuring a reliable and permanent seal upon proper installation.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

This lead-free, UPC/CUPC compliant fitting ensures secure connections for various plumbing and HVAC systems.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47075

Technical Specifications

• Working Pressure: 200 psi Max.
• Maximum Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum Rating: 29.2 inch Mercury @ 68 F (20 C)
• Material: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Standard: IAPMO PS 117-2016
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other Compliance: ISO9001, ISO14001
• Size: 3/4 inch
• Type: Press-Fit No Stop Coupling
