Bmi 47074 press no-stop coupling 1/2 inches

Product Description

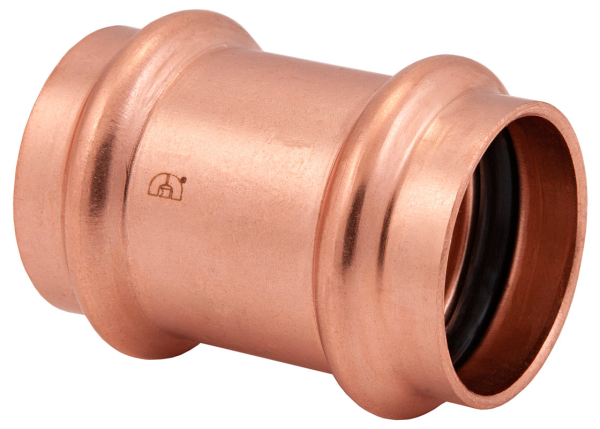

The BMI 47074 Press No-Stop Coupling 1/2" is a wrot copper press-fit fitting designed for various plumbing and HVAC applications. This lead-free coupling features a 360-degree leak detection design, ensuring secure, permanent connections. It is suitable for potable water, hydronic heating, chilled water, compressed air up to 200 psi, non-medical gases up to 140 psi, and low-pressure steam up to 15 psi. The coupling operates within a temperature range of 0 to 250 F.

• Compatible with all major brands of pressing tools for versatile use.
• Features a 360-degree leak detection design for identifying unpressed connections.

Product Highlights

Lead-free and UPC/CUPC compliant, this coupling is ideal for potable water and various gas applications, offering reliable performance.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47074
• Country of Origin: USA

Technical Specifications

• Connection: Press
• Group: Press Fittings
• Size: 1/2
• Type: Coupling - No Stop
• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum: 29.2" Mercury @ 68 F (20 C)
• Material: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Compliance: IAPMO PS 117-2016
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
