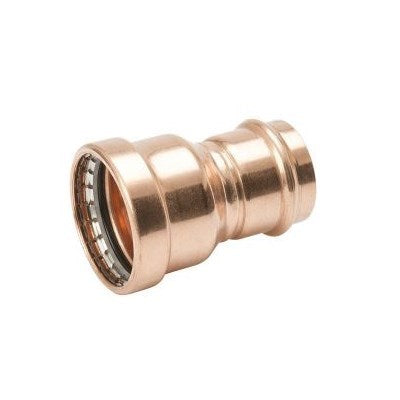

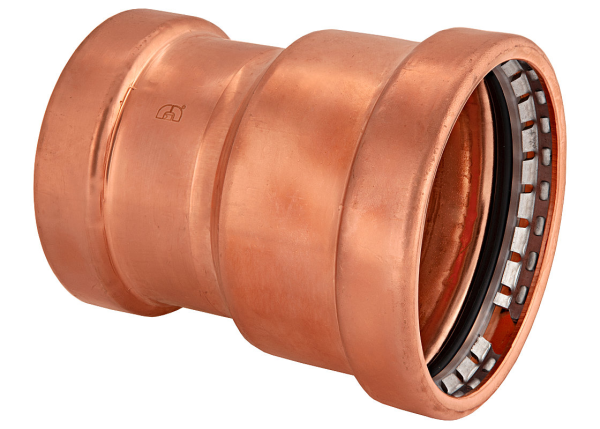

Bmi 47052 3x2 PressxPress Wrot Copper Press-Fit Reducer Coupling

Product Description

The BMI 47052 is a Wrot Copper Press-Fit Reducer Coupling designed for reliable plumbing and HVAC applications. This lead-free coupling features a 360-degree leak detection design, ensuring unpressed connections are easily identified during pressure testing. It is compatible with major pressing tools and suitable for potable water, hydronic heating, chilled water, compressed air (up to 200 psi), non-medical gases (up to 140 psi), and low-pressure steam (up to 15 psi). It operates within a working temperature range of 0 to 250 F.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

The Leak Detection Design provides fast identification of unpressed connections during pressure testing, ensuring a leak-proof, permanent connection when properly pressed.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47052
• Country of Origin: USA

Technical Specifications

• Working Pressure: 200 psi Max.
• Maximum Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum Rating: 29.2" Mercury @ 68 F (20 C)
• Material: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Compliance: IAPMO PS 117-2016
• Threads Compliance: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other Compliance: ISO9001, ISO14001
• Connection Type: Press
• Fitting Group: Press Fittings
• Size: 3 x 2
• Product Type: Coupling - Reducing
