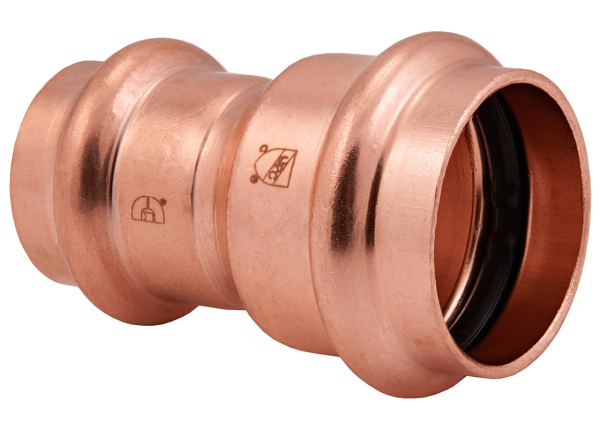

Bmi 47042 PressxPress Wrot Copper Press-Fit Reducer Coupling 2x1

Product Description

The BMI 47042 is a Wrot Copper Press-Fit Reducer Coupling, designed for reliable connections in various plumbing and HVAC systems. This 2x1 reducer coupling is suitable for potable water, hydronic heating with glycol, chilled water, and compressed air systems up to 200 psi. It also supports non-medical gases up to 140 psi and low-pressure steam up to 15 psi. Featuring a Leak Detection Design, it ensures easy identification of unpressed connections during pressure testing, operating within a temperature range of 0 to 250 F.

• Compatible with all major brands pressing tools for versatile installation.
• Features a 360-degree Leak Detection Design for easy identification of unpressed connections.
• Lead-free construction ensures compliance with NSF/ANSI Standard 61 - 372 for drinking water.

Product Highlights

Ensures leak-proof, permanent connections with a unique Leak Detection Design for reliable system integrity.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47042

Technical Specifications

• Product Type: Reducer Coupling
• Material: Wrot Copper
• Connection Type: Press-Fit
• Size: 2x1
• Working Pressure: 200 psi Max
• Max Test Pressure: 600 psi Max
• Low Pressure Steam: 15 psi Max
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum: 29.2" Mercury @ 68 F (20 C)
• Dimensions Compliance: IAPMO PS 117-2016
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
