Bmi 47040 press reducing coupling 2 inches x 1-1/2 inches

Product Description

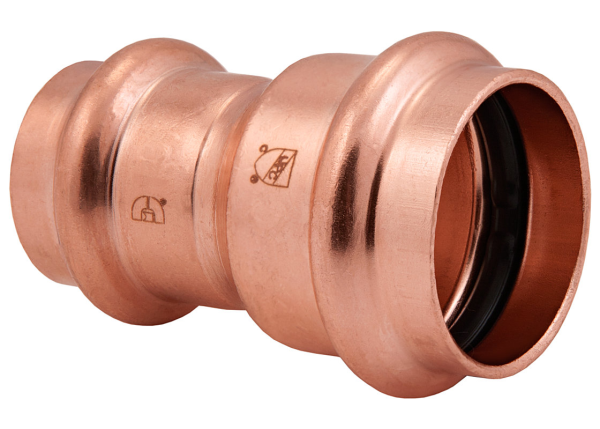

The BMI 47040 Press Reducing Coupling 2" X 1-1/2" is a wrot copper press-fit fitting designed for various applications including potable water, hydronic heating, chilled water, and compressed air systems up to 200 psi. Constructed from ASME/ASTM B42 C12200 (99.9% copper), it features a leak detection design for easy identification of unpressed connections during pressure testing, ensuring a secure installation. This coupling facilitates reliable connections in plumbing and HVAC systems.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

Features a 360-degree leak detection design for reliable installation and is compatible with major pressing tools.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47040

Technical Specifications

• Connection: Press
• Group: Press Fittings
• Size: 2 x 1-1/2 inches
• Type: Coupling - Reducing
• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum: 29.2" Mercury @ 68 F (20 C)
• Material: ASME/ASTM B42 C12200 (99.9% copper)
• Dimensions Standard: IAPMO PS 117-2016
• Threads Standard: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other Compliance: ISO9001, ISO14001
