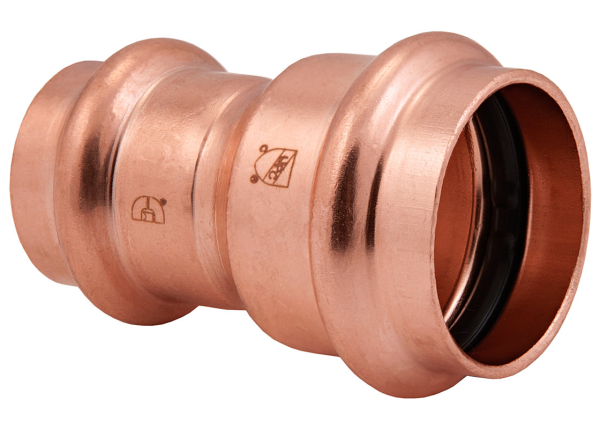

Bmi 47037 wrot copper press-fit reducing coupling fitting 1-1/2 inches x 3/4 inches

Product Description

The BMI 47037 Wrot Copper Press-Fit Reducing Coupling Fitting is designed for various plumbing and HVAC applications. This lead-free fitting is suitable for potable water, hydronic heating with Glycol, chilled water, compressed air up to 200 psi, non-medical gases up to 140 psi, and low-pressure steam up to 15 psi. It complies with ASME/ASTM B42 C12200 materials and NSF/ANSI STANDARD 61 - 372 for drinking water, ensuring safe and reliable connections.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design provides fast and easy identification of unpressed connections during pressure testing

Product Highlights

Lead-free copper fitting for diverse plumbing and HVAC systems with leak detection.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47037

Technical Specifications

• Maximum Working Pressure: 200 psi
• Maximum Test Pressure: 600 psi
• Low Pressure Steam Rating: 15 psi
• Working Temperature Range: 0 to 250 F (-18 to 121 C)
• Vacuum Rating: 29.2 inches Mercury at 68 F (20 C)
• Material: ASME/ASTM B42 C12200 (99.9% copper)
• Dimensions Standard: IAPMO PS 117-2016
• Drinking Water Compliance: NSF/ANSI Standard 61-372 (Lead Free)
• Size: 1-1/2 x 3/4 inches
• Type: Press-Fit Reducing Coupling Wrot
