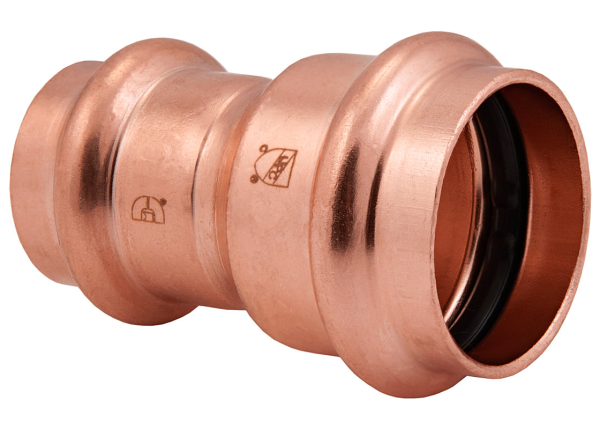

Bmi 47036 1-1/2x1 PressxPress Wrot Copper Press-Fit Reducer Coupling

Product Description

The BMI 47036 is a 1-1/2 x 1 inch Wrot Copper Press-Fit Reducing Coupling. This fitting is designed for diverse applications including potable water, hydronic heating with Glycol, chilled water, compressed air (up to 200 psi), and low pressure steam (up to 15 psi). It is compatible with all major brands of pressing tools and features a 360-degree Leak Detection Design for identifying unpressed connections during pressure testing, ensuring reliable plumbing and HVAC installations.

• Reducing Coupling with Press-Fit end style for secure connections.
• Constructed from Wrot Copper, ensuring durability and lead-free compliance.
• Features a 360-degree Leak Detection Design and compatibility with major pressing tools.

Product Highlights

Lead-free wrot copper reducing coupling with 360-degree leak detection, compatible with major pressing tools.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47036

Technical Specifications

• Brand: BMI
• MPN: 47036
• Coupling Type: PRESSxPRESS WROT COPPER PRESS-FIT REDUCER COUPLING
• Nominal Size: 1-1/2 x 1 in
• Material: WROT COPPER
• Connection Type: PRESS-FIT
• Fitting Type: Coupling
• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam Rating: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum Rating: 29.2" Mercury @ 68 F (20 C)
• Material Standard: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Standard: IAPMO PS 117-2016
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other Compliance: ISO9001, ISO14001
