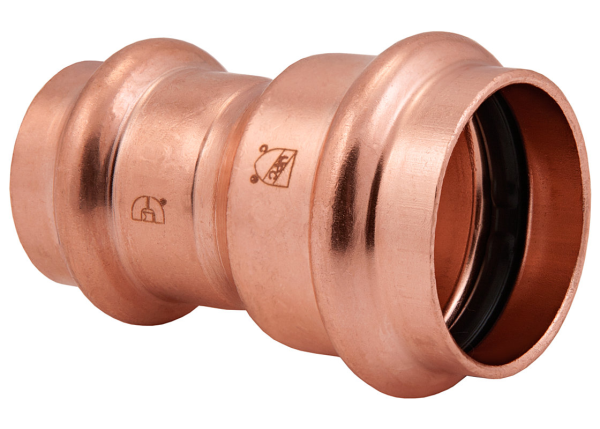

Bmi 47035 1-1/2x1-1/4 pressxpress wrot copper press-fit reducer coupling

Product Description

The BMI 47035 is a 1-1/2" x 1-1/4" Wrot Copper Press-Fit Reducing Coupling Fitting, designed for secure and leak-proof connections in various plumbing and HVAC systems. Constructed from ASME/ASTM B42 C12200 (99.9% copper), it is suitable for potable water, hydronic heating, chilled water, and compressed air applications up to 200 psi. This fitting operates within a working temperature range of 0 to 250 F, ensuring reliable performance in diverse environments.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

Lead-Free, UPC/CUPC compliant, and IAPMO PS 117-2016 certified for quality and safety.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47035

Technical Specifications

• Coupling Type: PRF Coupling
• Size: 1-1/2 X 1-1/4
• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum Rating: 29.2" Mercury @ 68 F (20 C)
• Material: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Standard: IAPMO PS 117-2016
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other Compliance: ISO9001, ISO14001
