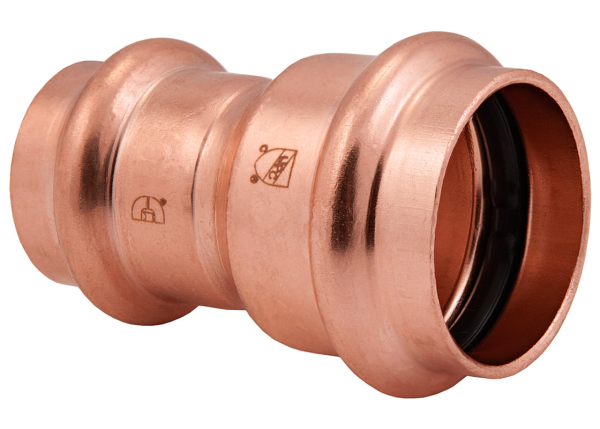

Bmi 47031 wrot copper press-fit reducing coupling fitting 1-1/4 inches x 1 inches

Product Description

The BMI 47031 Wrot Copper Press-Fit Reducing Coupling Fitting is designed for creating secure, permanent connections in plumbing systems. This fitting features a Leak Detection Design, allowing for easy identification of unpressed connections during pressure testing with air or water up to 85 psi. It is suitable for use with ASME/ASTM B88 standard K, L, and M hard copper tubing. The fitting is compliant with NSF/ANSI STANDARD 61 - 372, ensuring lead-free operation for potable water applications.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

Lead-Free, UPC/CUPC compliant copper fitting with advanced leak detection for secure, permanent connections.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47031

Technical Specifications

• Working Pressure: 200 psi Max.
• Maximum Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum Rating: 29.2" Mercury @ 68 F (20 C)
• Material Compliance: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Compliance: IAPMO PS 117-2016
• Threads Compliance: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other Compliance: ISO9001, ISO14001
• Type: Coupling
• Size: 1-1/4" x 1"
• Material: Wrot Copper
