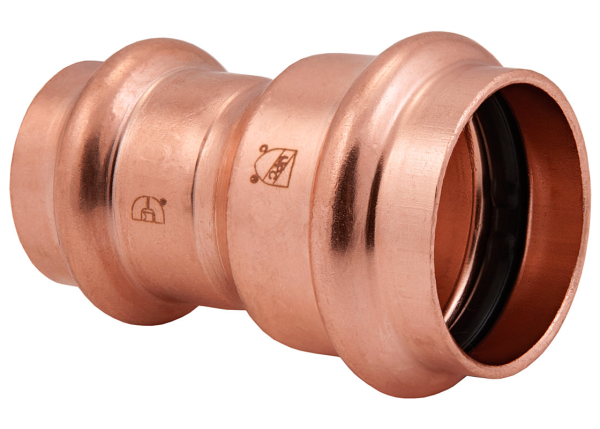

Bmi 47028 1 inches x 1/2 inches wrot copper press-fit reducing coupling fitting

Product Description

The BMI 47028 Wrot Copper Press-Fit Reducing Coupling Fitting is engineered for diverse applications such as potable water, hydronic heating, and compressed air up to 200 psi. This fitting features a Leak Detection Design, allowing for easy identification of unpressed connections during pressure testing. It operates within a working temperature range of 0~250 F (-18~121 C) and is compliant with NSF/ANSI STANDARD 61 - 372, ensuring lead-free use for drinking water systems.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

Lead-free, UPC/CUPC compliant, and certified to ISO9001 and ISO14001 for reliable performance.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47028

Technical Specifications

• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum: 29.2" Mercury @ 68 F (20 C)
• Materials Compliance: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Standard: IAPMO PS 117-2016
• Threads Standard: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other Compliance: ISO9001, ISO14001
