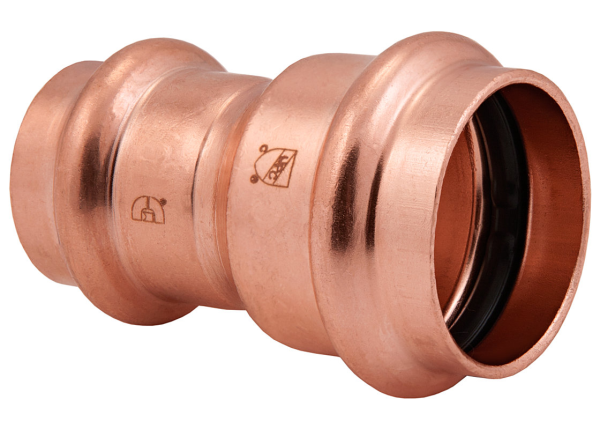

Bmi 47027 Wrot Copper Press-Fit Reducing Coupling Fitting 1 x 3/4

Product Description

The BMI 47027 Wrot Copper Press-Fit Reducing Coupling Fitting is designed for various applications including potable water, hydronic heating, chilled water, compressed air up to 200 psi, non-medical gases up to 140 psi, and low pressure steam up to 15 psi. It features a 360-degree leak detection design for identifying unpressed connections during pressure testing. This lead-free fitting is compatible with major pressing tools and suitable for ASME/ASTM B88 standard K, L, and M hard copper tubing.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

Lead-free design with 360-degree leak detection for secure and reliable connections in diverse applications.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47027

Technical Specifications

• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum: 29.2 inches Mercury @ 68 F (20 C)
• Materials Compliance: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Compliance: IAPMO PS 117-2016
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Connection: Press
• Group: Press Fittings
• Nominal Size: 1 x 3/4
• Fitting Type: Coupling - Reducing
• End Style: Press-Fit
• Material: Wrot Copper
