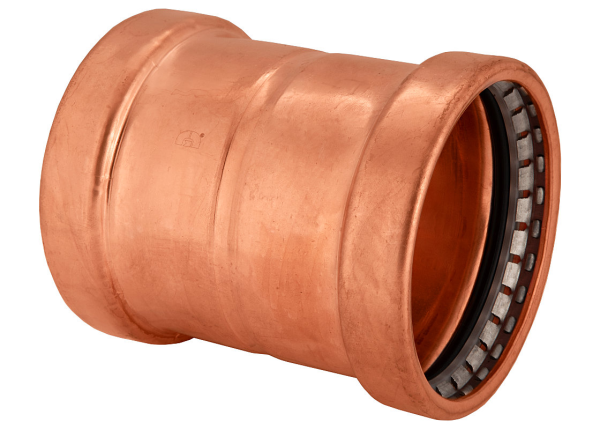

Bmi 47011 3 inches wrot copper press-fit coupling dot stop fitting

Product Description

The BMI 47011 Wrot Copper Press-Fit Coupling Dot Stop Fitting is designed for various applications including potable water, hydronic heating with glycol, chilled water, compressed air up to 200 psi, non-medical gases up to 140 psi, and low pressure steam up to 15 psi. This 3-inch fitting is compatible with all major pressing tools and features a 360-degree Leak Detection Design for easy identification of unpressed connections during pressure testing, ensuring a secure installation.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

Lead-free copper fitting with leak detection for reliable, permanent connections in various plumbing and HVAC systems.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47011

Technical Specifications

• Working pressure: 200 psi Max.
• Max test pressure: 600 psi Max.
• Low pressure steam: 15 psi Max.
• Working temperature: 0~250 F (-18~121 C)
• Vacuum: 29.2" Mercury @ 68 F (20 C)
• Materials: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Standard: IAPMO PS 117-2016
• Drinking water compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other compliance: ISO9001, ISO14001
