Bmi 47007 Dot Stop Coupling 1-1/4 in Nominal CUP CPL 1-1/4 PRS X PRS

Product Description

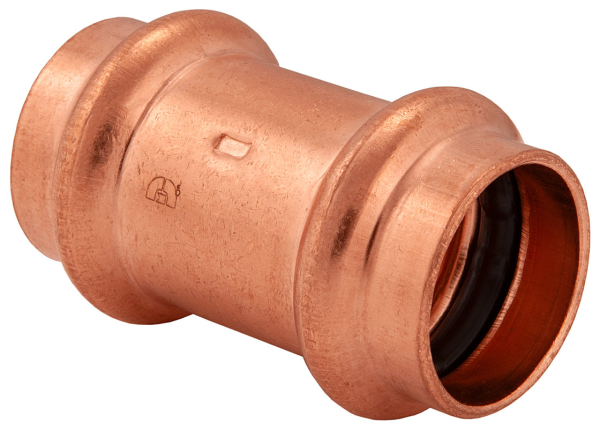

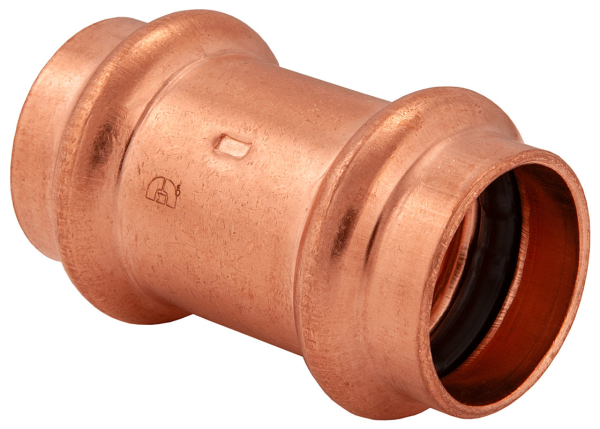

The BMI 47007 Dot Stop Coupling is a wrot copper press-fit coupling designed for various applications including potable water, hydronic heating, chilled water, compressed air, non-medical gases, and low pressure steam. It is compatible with all major brands of pressing tools. This coupling features a 360-degree Leak Detection Design for identifying unpressed connections during pressure testing. When properly pressed, it creates a leak-proof, permanent connection.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design
• Lead-Free

Product Highlights

Designed for potable water, hydronic heating, and compressed air systems, ensuring leak-proof, permanent connections.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47007

Technical Specifications

• End Style: Press-Fit
• Fitting Type: Coupling
• Material: Wrot Copper
• Nominal Size: 1-1/4 in
• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum: 29.2" Mercury @ 68 F (20 C)
• Dimensions Standard: IAPMO PS 117-2016
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Certifications: ISO9001, ISO14001
