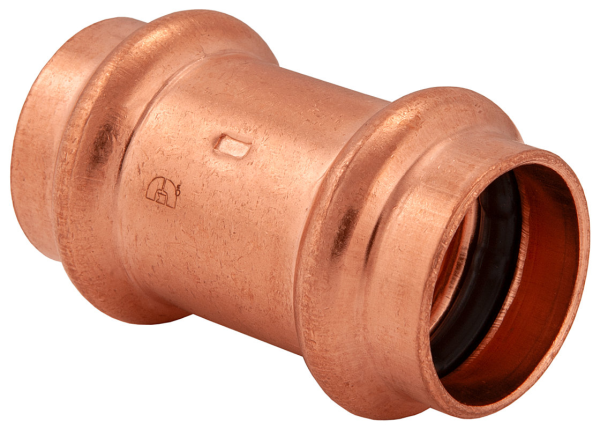

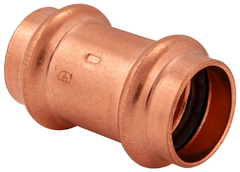

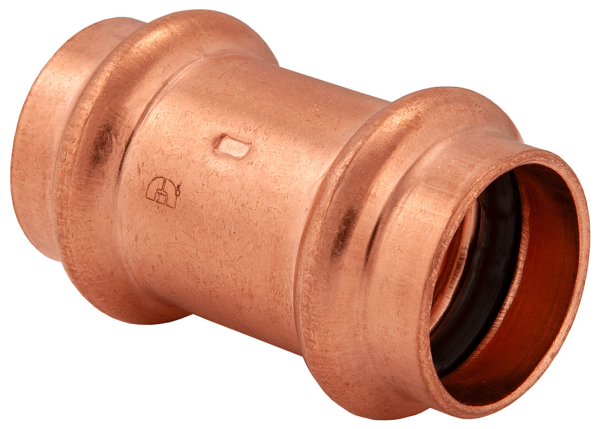

Bmi 47005 wrot copper press-fit coupling dot stop fitting 3/4 inches

Product Description

The BMI 47005 Wrot Copper Press-Fit Coupling Dot Stop Fitting is a 3/4" lead-free component designed for secure plumbing connections. It features a 360-degree leak detection design and is compatible with all major pressing tools. This fitting operates at a maximum working pressure of 200 psi and a working temperature range of 0 to 250 F, making it suitable for potable water, hydronic heating, chilled water, compressed air, non-medical gases, and low-pressure steam applications.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

Lead-free copper fitting with leak detection for various plumbing and HVAC applications.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47005

Technical Specifications

• Working Pressure: 200 psi Max.
• Maximum Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum Rating: 29.2" Mercury @ 68 F (20 C)
• Material: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Standard: IAPMO PS 117-2016
• Threads Standard: ASME/ASTM B1.20.1
• Drinking Water Standard: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Certifications: ISO9001, ISO14001
• Available Sizes: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"
