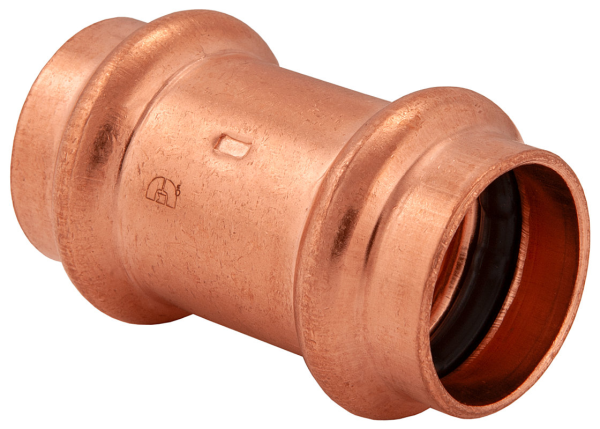

Bmi 47004 Wrot Copper Press-Fit Coupling Dot Stop Fitting 1/2 inches

Product Description

The BMI 47004 Wrot Copper Press-Fit Coupling Dot Stop Fitting is designed for various applications including potable water, hydronic heating, chilled water, compressed air up to 200 psi, non-medical gases up to 140 psi, and low pressure steam up to 15 psi. This lead-free fitting features a 360-degree Leak Detection Design for identifying unpressed connections during pressure testing, ensuring system integrity. It is compatible with major pressing tools and meets NSF/ANSI STANDARD 61 - 372 for drinking water.

• 360 Degree Leak Detection Design for identifying unpressed connections.
• Lead-free construction suitable for potable water applications.
• Compatible with all major brands of pressing tools.

Product Highlights

Features a 360-degree Leak Detection Design to ensure secure, leak-proof connections during installation and testing.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47004

Technical Specifications

• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum: 29.2" Mercury @ 68 F (20 C)
• Materials Compliance: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Compliance: IAPMO PS 117-2016
• Threads Compliance: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other Certifications: ISO9001, ISO14001
