Bmi 46805 3/4 press-fit x male adapter carbon gas

Product Description

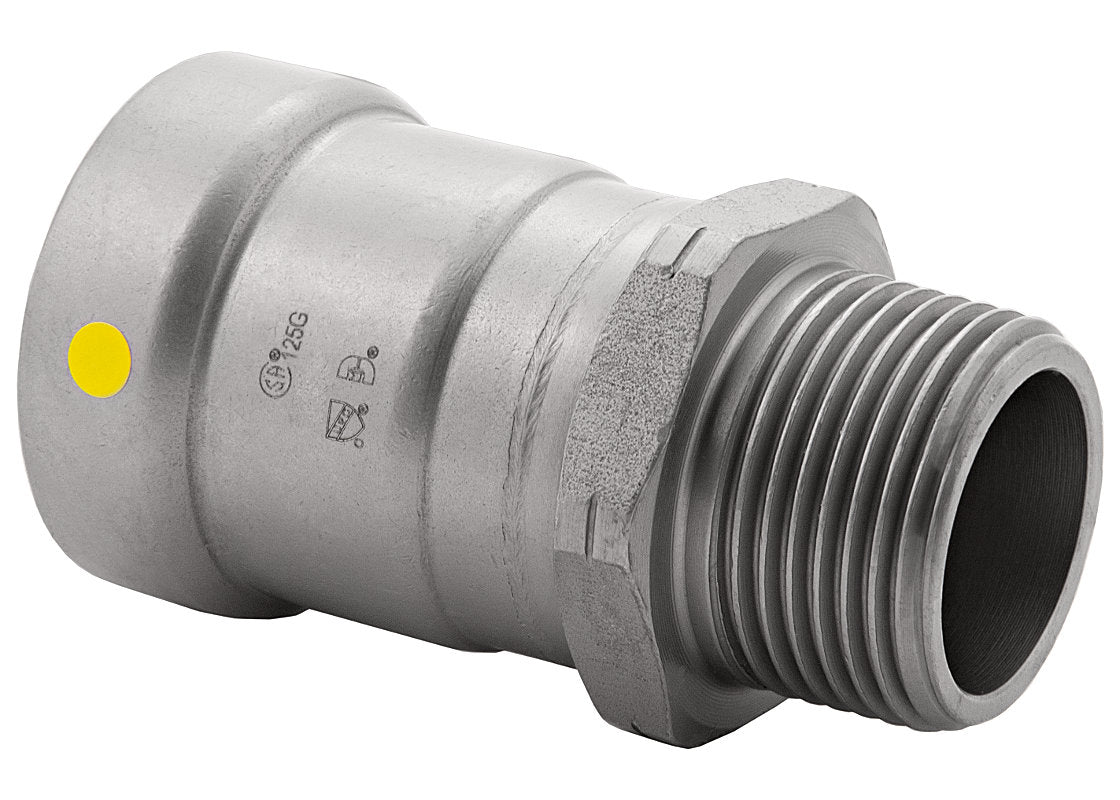

The BMI 46805 is a Carbon Press male threaded adapter, featuring a 3/4 inch press connection and a 3/4 inch male pipe thread. This adapter is designed for secure pipe connections in gas applications, compatible with Sch. 40 Black Iron or Galvanized fittings that comply with ASTM A53, A106, A135, A795 standards. It operates within a working pressure of 125 psi max and a temperature range of -40°F to 180°F, ensuring reliable performance.

• Equipped with a HNBR sealing element and stainless-steel ring designed with two rows of teeth that grip the pipe and lock the fitting firmly in place.
• Protected with a Zinc-Nickel coating and 100% factory tested before being individually bagged.
• Offers a quick installation process using electro-hydraulic press tools, reducing delays and labor costs.

Product Highlights

This BMI Carbon Press adapter ensures secure, efficient pipe connections for gas applications, featuring robust construction and easy installation.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 46805

Technical Specifications

• Brand: BMI
• MPN: 46805
• Size: 3/4
• Type: Press-Fit x Male Adapter
• Material/Application: Carbon Gas
• Press Size: 3/4 inch
• Threaded Size: 3/4 inch
• Working Pressure: 125 psi max
• Working Temperature: -40°F to 180°F
