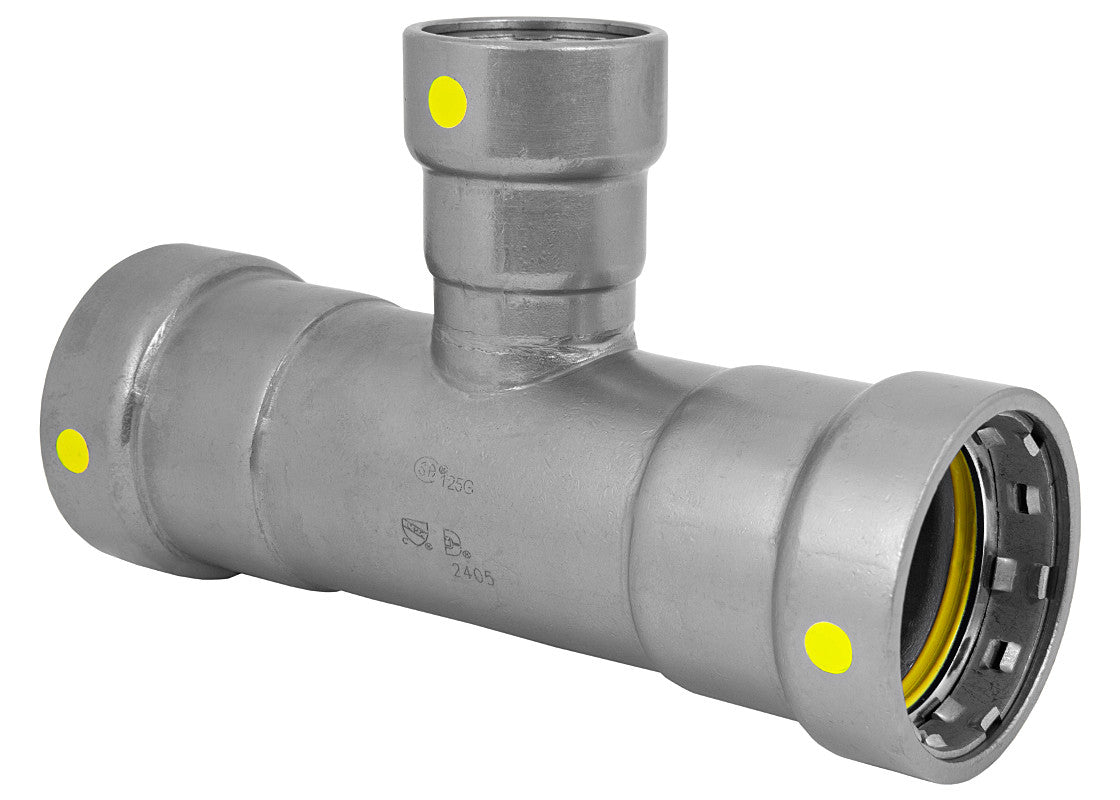

Bmi 46495 Carbon Press Gas Tee 2x2x1-1/4 in

Product Description

The BMI 46495 is a carbon steel press-fit tee designed for gas piping systems. It connects two 2-inch run ports to a 1-1/4-inch branch port using a press connection method, eliminating the need for threading or welding at the joint. This fitting is suited for natural gas and propane distribution in commercial and residential piping systems. Licensed plumbers and gas fitters install this fitting using a press tool with the appropriate jaw set. At 0.999 pounds, it is a compact, full-port tee that maintains consistent flow through the branch connection.

This fitting is used in carbon press gas piping systems where a reducing branch takeoff is required. It is appropriate for new construction and retrofit applications where press-fit gas fittings are specified. The 2 x 2 x 1-1/4 inch configuration accommodates a main run line stepping down to a smaller branch supply. Typical install scenarios include commercial gas distribution headers, rooftop HVAC gas supply runs, and residential gas main-to-appliance branch connections where press technology is approved by the local authority having jurisdiction.

Key Features

• Carbon steel construction rated for gas service
• Press-fit connection on all three ports — no threading or open flame required
• Reducing branch configuration: 2 x 2 inch run, 1-1/4 inch branch
• Compact form factor at under 1 pound for easier handling in tight spaces
• Belongs to the BMI Carbon Press Gas Fittings product line for system consistency

Compatibility

Designed for use within carbon press gas fitting systems. Compatible with standard press-fit gas piping tooling. Consult local codes and the authority having jurisdiction to confirm press-fit gas fittings are approved for the intended application.

Installation Notes

Installation must be performed by a licensed plumber or gas fitter in accordance with IFGC requirements and applicable local codes. Shut off and depressurize the gas supply completely before cutting into any existing line. Use a calibrated press tool with the correct jaw size for each port diameter — do not substitute jaw sizes between the 2-inch and 1-1/4-inch ports. Inspect each pressed joint for the indicator ring confirmation before restoring gas pressure and leak-testing all connections with an approved gas leak detection solution.

Technical Specifications

• Material: Carbon Steel
• Connection Type: Press-Fit
• Run Size: 2 x 2 inches
• Branch Size: 1-1/4 inches
• Weight: 0.999 pounds
• Application: Gas Piping
• UPC: 77770146495

Standard Information

• Brand: BMI
• Manufacturer Part Number: 46495
