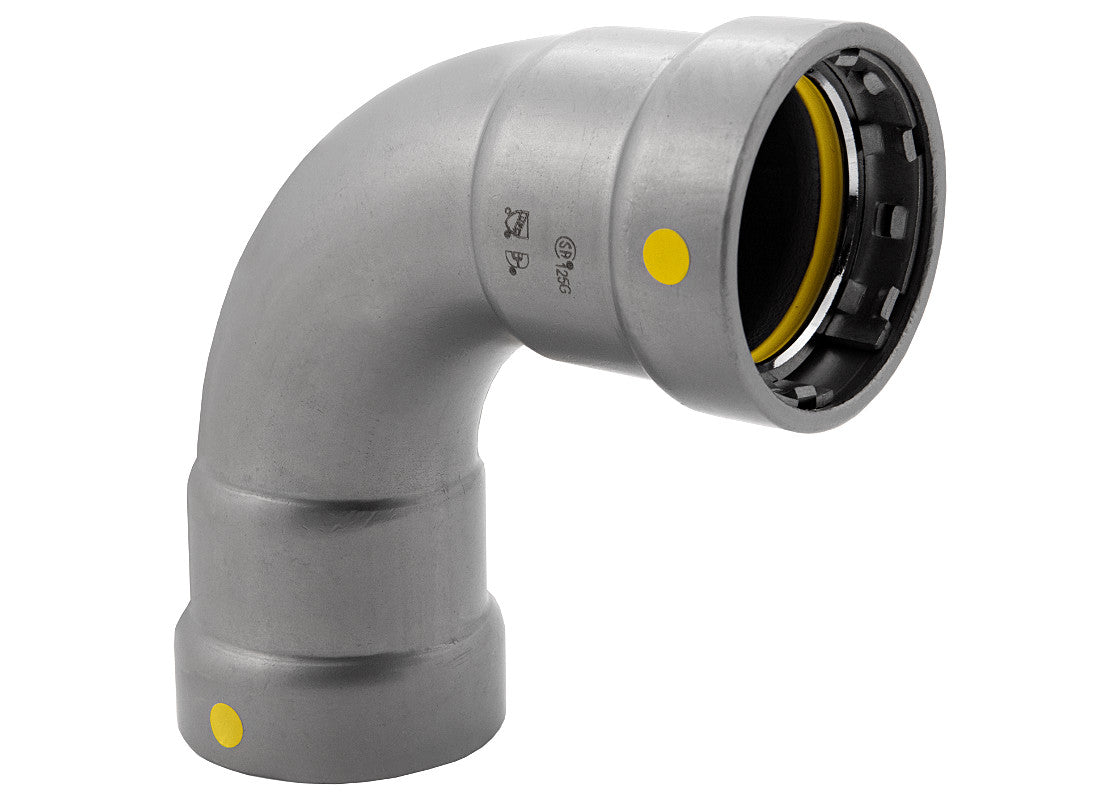

Bmi 46308 Carbon Press Gas 90 Elbow 1-1/2 Inch

Product Description

The BMI 46308 is a 1-1/2 inch carbon steel press-fit 90-degree elbow designed for gas distribution piping systems. This fitting uses a press connection method, eliminating the need for threading, welding, or soldering at the joint. It is suited for natural gas and propane applications where a direction change is required in the piping run. Licensed plumbers and gas fitters install this type of fitting during rough-in or retrofit work on residential and light commercial gas systems.

The 46308 is used in carbon press gas piping systems where a 90-degree change of direction is needed. Its press-fit design allows for faster installation compared to traditional threaded or welded fittings, making it a practical choice for gas line work in tight spaces or time-sensitive service calls. This elbow is categorized as a carbon press gas fitting and falls within the angles and elbows product group.

Key Features

• 90-degree elbow configuration for gas piping direction changes
• 1-1/2 inch press-fit connection — no threading or welding required
• Carbon steel construction suited for gas service
• Press connection method supports faster, consistent joints in the field
• Designed for use in natural gas and propane distribution piping

Compatibility

Designed as an OEM-style replacement and standard-use fitting for 1-1/2 inch carbon press gas piping systems in residential and light commercial applications.

Installation Notes

Installation must be performed by a licensed plumber or gas fitter in accordance with applicable local codes and the International Fuel Gas Code (IFGC). Shut off and verify gas supply is completely de-pressurized before making any connections. A properly rated press tool with the correct jaw size for the fitting must be used to achieve a leak-free joint. After installation, pressure-test all connections per code requirements before returning the system to service.

Technical Specifications

• Material: Carbon Steel
• Connection Type: Press Fit
• Angle: 90 Degrees
• Size: 1-1/2 inches
• Application: Gas (Natural Gas / Propane)
• UPC: 77770146308

Standard Information

• Brand: BMI
• Manufacturer Part Number: 46308
