Bmi 46255 3/4 Inch Carbon Press Gas 45 Degree Elbow

Product Description

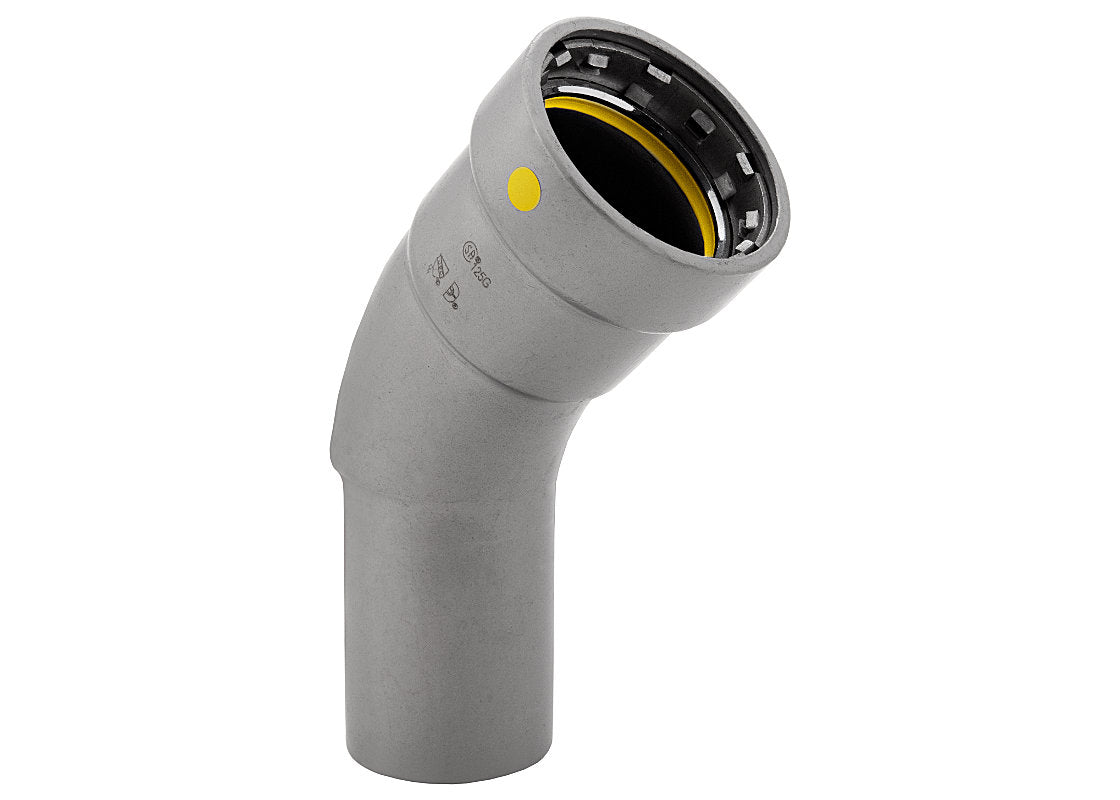

The BMI 46255 is a 3/4-inch carbon steel press-fit 45-degree elbow designed for natural gas and propane distribution piping systems. It connects using a FTG (fitting) end on one side and a press-fit end on the other, allowing a directional change without threaded joints or open-flame soldering. This fitting is suited for residential and light commercial gas piping installations where carbon press systems are specified. Licensed plumbers and gas fitters are the primary installers. The carbon steel construction handles the demands of gas service, and the press-fit connection method supports faster assembly compared to traditional threaded fittings.

The BMI 46255 is used in gas distribution lines where a 45-degree change of direction is required. It fits into carbon press gas fitting systems, making it appropriate for new construction and retrofit gas piping projects in residential and light commercial applications. The FTG inlet accepts a standard tube end, while the press-fit outlet is secured with a compatible pressing tool. Always verify that all fittings, valves, and pipe in the assembly are rated for gas service before installation.

Key Features

• 3/4-inch FTG x press-fit connection for tool-pressed, flame-free assembly
• 45-degree elbow geometry for moderate directional changes in gas piping runs
• Carbon steel construction rated for gas service applications
• Eliminates open-flame joining, reducing fire risk during installation in occupied or confined spaces
• Part of the BMI carbon press gas fitting system for consistent, system-matched connections

Compatibility

Designed as an OEM-style component for carbon press gas piping systems using 3/4-inch FTG x press-fit connections in natural gas and propane service applications.

Installation Notes

Installation must be performed by a licensed plumber or gas fitter in accordance with the International Fuel Gas Code (IFGC) and all applicable local codes. Shut off the gas supply and verify zero pressure at the work area before disassembling or installing any fitting. Use only a press tool and jaw set that are approved and rated for carbon press gas fittings. After pressing, perform a leak test at the required test pressure before returning the system to service.

Technical Specifications

• Size: 3/4 inches
• Connection Type: FTG x Press-Fit
• Fitting Angle: 45 degrees
• Material: Carbon Steel
• Application: Gas Service (Natural Gas and Propane)
• Category: Carbon Press Gas Fittings
• UPC: 77770146255

Standard Information

• Brand: BMI
• Manufacturer Part Number: 46255
