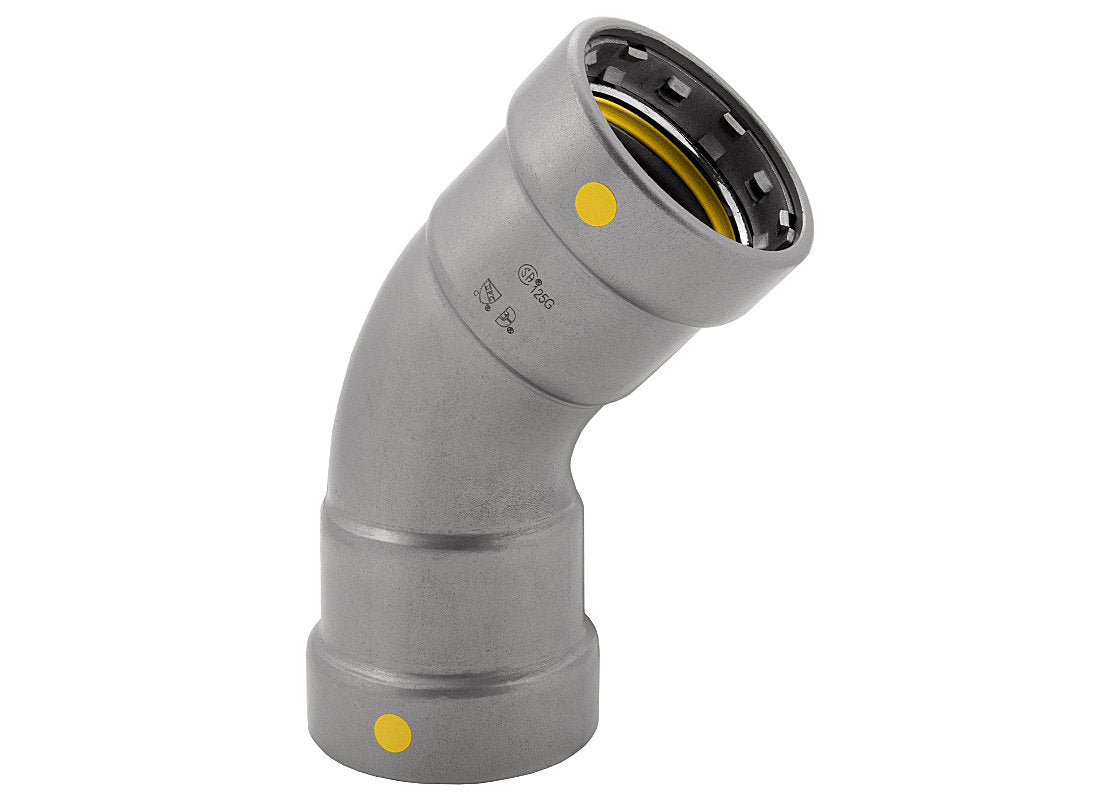

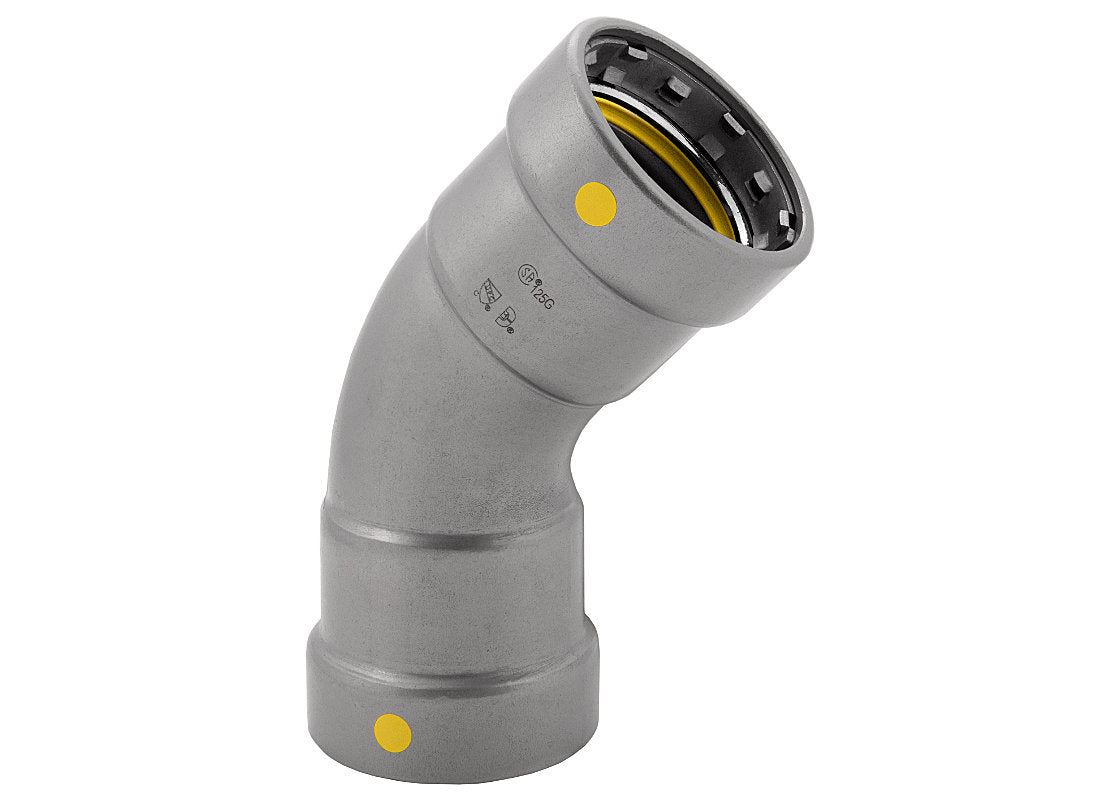

Bmi 46204 Carbon Press Gas 45 Degree Elbow 1/2 Inch

Product Description

The BMI 46204 is a 1/2-inch, 45-degree press-fit elbow designed for carbon steel gas piping systems. This fitting connects gas supply lines using a press-fit joining method, eliminating the need for open flame or threaded connections at the joint. It is suited for natural gas and propane distribution in residential and light commercial applications. The carbon steel construction provides the strength and pressure tolerance required for gas service. Licensed plumbers and gas fitters install this type of fitting as part of code-compliant interior gas piping work. At 0.128 pounds, it is a compact, lightweight component that handles easily during installation.

The BMI 46204 is used in press-fit carbon steel gas piping systems where a 45-degree direction change is needed on a 1/2-inch line. Typical applications include rough-in gas piping to appliances such as furnaces, water heaters, ranges, and dryers in residential construction and retrofit work. The press-fit system is commonly chosen on job sites where open-flame brazing or threading is restricted or where faster assembly is required.

Key Features

• 45-degree elbow geometry for angled gas line routing on 1/2-inch pipe
• Press-fit connection method — no threading or open-flame joining required at the fitting
• Carbon steel construction rated for gas service applications
• Lightweight at 0.128 pounds, practical for high-volume rough-in work
• Fits within the BMI Carbon Press Gas Fittings product line for system consistency

Compatibility

Designed as an OEM-style press-fit carbon gas fitting for use in 1/2-inch carbon steel gas piping systems compatible with standard press-fit tooling approved for gas service.

Installation Notes

Installation must be performed by a licensed plumber or gas fitter in accordance with local codes and the International Fuel Gas Code (IFGC). Shut off and verify zero pressure on the gas supply before working on any section of the piping system. Press-fit gas fittings require a press tool specifically approved and rated for gas service — do not use a water-only press tool on gas fittings. Inspect the fitting and pipe end for damage or debris before pressing, and follow the fitting manufacturer's published pressing procedures.

Technical Specifications

• Pipe Size: 1/2 inch
• Elbow Angle: 45 degrees
• Connection Type: Press-fit
• Material: Carbon steel
• Application: Gas service
• Weight: 0.128 pounds

Standard Information

• Brand: BMI
• Manufacturer Part Number: 46204
