Bmi 38984 1/2in P.F.x 3/8OD Straight 1/4in Turn CP Valve LF

Product Description

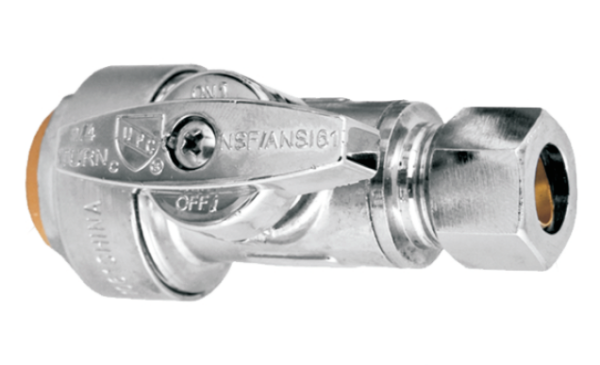

The BMI 38984 straight stop valve features a forged brass body with chrome plating, designed for a quarter-turn open and shut operation. It incorporates self-lubricating PTFE seats and a double O-ring for enhanced safety, making it suitable for plumbing and hydronic heating applications. Constructed with C46500 brass for the body, bonnet, and ball, and certified by IAPMO, this lead-free valve meets ASME A112.18.1 and ANSI/NSF 61 standards.

• Forged brass with chrome plated body
• Quarter turn open & shut operation
• Suitable for plumbing and hydronic heating applications

Product Highlights

Lead-free straight stop valve with forged chrome-plated brass body, quarter-turn operation, and double O-ring for plumbing and hydronic heating.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 38984

Technical Specifications

• Body Material: C46500
• Bonnet Material: C46500
• Ball Material: C46500
• Seat Material: PTFE
• Stem Material: C46500
• O-Ring Material: EPDM
• Handle Material: ABS
• Screw Material: SS304
• Compression Ring Material: H65 Brass
• Nut Material: C37700
• Certified By: IAPMO
• Compliance Standards: ASME A112.18.1, CSA B125.1-11, F1807, F1960, ANSI/NSF 61, ANSI/NSF 372, ANSI/NSF 14
