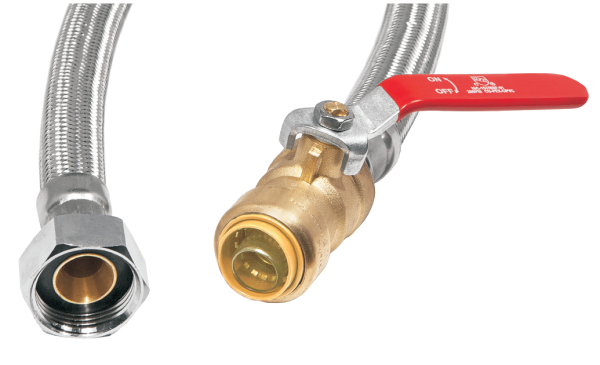

Bmi 38638 1/2 inches x 3/4 inches x 18 inches Brass Push-Fit x FIPS Ball Valve with Flexible Tube Fitting

Product Description

The BMI 38638 is a 1/2" x 3/4" x 18" brass push-fit x FIPS ball valve with a flexible tube fitting, designed for plumbing applications. This lead-free valve simplifies installations by eliminating the need for soldering, solvents, or crimping. It is compatible with copper, PEX, and CPVC piping, supporting a maximum pressure of 200 psi (1378 kPa) and a maximum temperature of 180°F (82°C). Certified by IAPMO, it complies with cUPC, CSA, ASSE 1061-2011, and NSF/ANSI Standard 61-2014a.

• Eliminates the need for soldering, solvents, or crimping for quick installation.
• Compatible with copper, PEX, and CPVC piping materials.
• Constructed from lead-free brass for safe water applications.

Product Highlights

Simplifies plumbing installations by removing the need for traditional joining methods.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 38638

Technical Specifications

• Maximum Pressure: 200 psi (1378 kPa)
• Maximum Temperature: 180°F (82°C)
• Certifying Body: IAPMO
• Compliance Standards: cUPC, CSA, ASSE 1061-2011, NSF/ANSI Standard 61-2014a
• Material: Brass
• Inlet Connection: 1/2 inch
• Outlet Connection: 3/4 inch
• Length: 18 inches
• Connection Type: Push-Fit x FIPS
• Valve Type: Ball Valve
• Pipe Compatibility: Copper, PEX, CPVC
• Lead-Free: Yes
