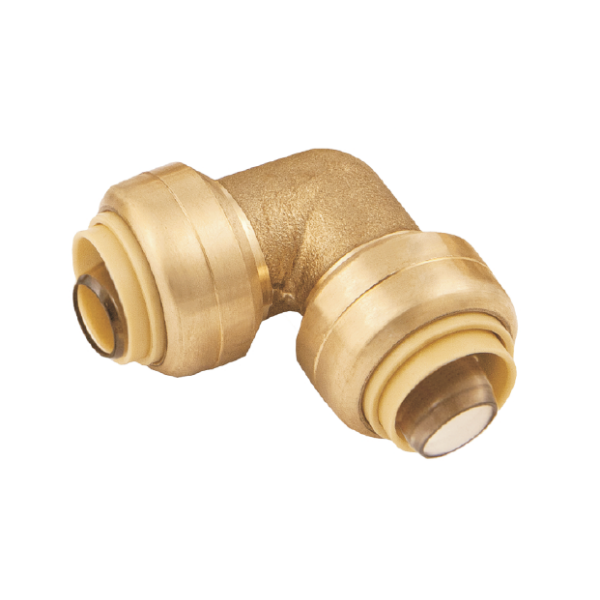

Bmi 38306 brass push-fit x push-fit elbow fitting 1 inch 90 degree

Product Description

The BMI 38306 is a 1-inch brass push-fit x push-fit 90-degree elbow fitting designed for secure pipe connections without soldering, solvents, or crimping. This lead-free fitting works with copper, PEX, or CPVC piping systems. It is certified by IAPMO and complies with cUPC, CSA, ASSE 1061-2011, and NSF/ANSI Standard 61-2014a. The fitting supports a maximum pressure of 200 psi (1378 kPa) and a maximum temperature of 180 F (82 C).

• Facilitates quick and secure connections without soldering, solvents, or crimping.
• Compatible with copper, PEX, and CPVC piping materials.
• Constructed from lead-free brass for potable water applications.

Product Highlights

Lead-free brass 90-degree push-fit elbow for versatile and compliant plumbing installations.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 38306
• Country of Origin: USA

Technical Specifications

• Max Pressure: 200 psi (1378 kPa)
• Max Temperature: 180 F (82 C)
• Certifications: IAPMO
• Compliance Standards: cUPC, CSA, ASSE 1061-2011, NSF/ANSI Standard 61-2014a
• Connection Type: Push-Fit
• Nominal Size: 1 inch
• Fitting Type: 90 Degree Elbow
