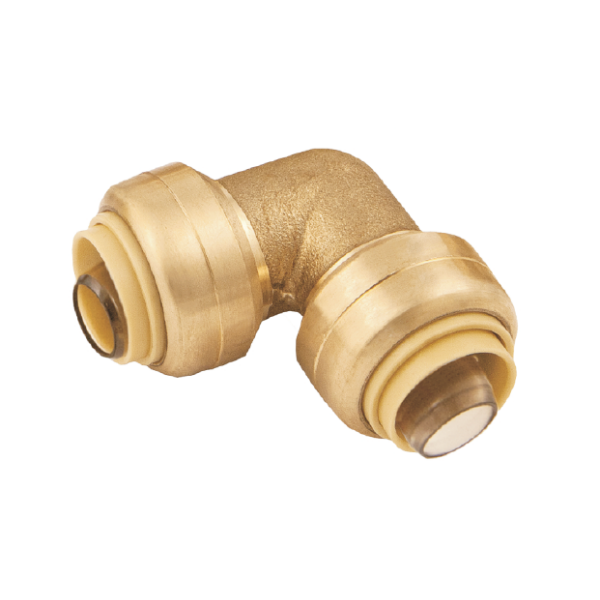

Bmi 38304 1/2 inch Brass Push-Fit x Push-Fit 90 degree Elbow Fitting

Product Description

The BMI 38304 is a 1/2 inch Brass Push-Fit x Push-Fit 90 Degree Elbow Fitting for plumbing connections. This lead-free fitting simplifies installation, eliminating the need for soldering, solvents, or crimping. It is compatible with Copper, PEX, and CPVC piping, supporting a maximum pressure of 200 psi (1378 kPa) and a maximum temperature of 180 F (82 C). Certified by IAPMO, it complies with cUPC, CSA, ASSE 1061-2011, and NSF/ANSI Standard 61-2014a.

• Easy installation without soldering, solvent, or crimping.
• Compatible with Copper, PEX, or CPVC piping.
• Lead-free construction for safe water systems.

Product Highlights

This 1/2 inch brass push-fit elbow provides a secure, lead-free 90-degree connection for various piping types.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 38304

Technical Specifications

• Max. Pressure: 200 psi | 1378 kPa
• Max. Temperature: 180 F | 82 C
• Certified By: IAPMO
• Complies With: cUPC, CSA, ASSE 1061-2011, NSF/ANSI Standard 61-2014a
• Size: 1/2 inch
• Connection Type: Push Fit
• Fitting Type: 90 Degree Elbow
• Material Feature: Lead-Free
