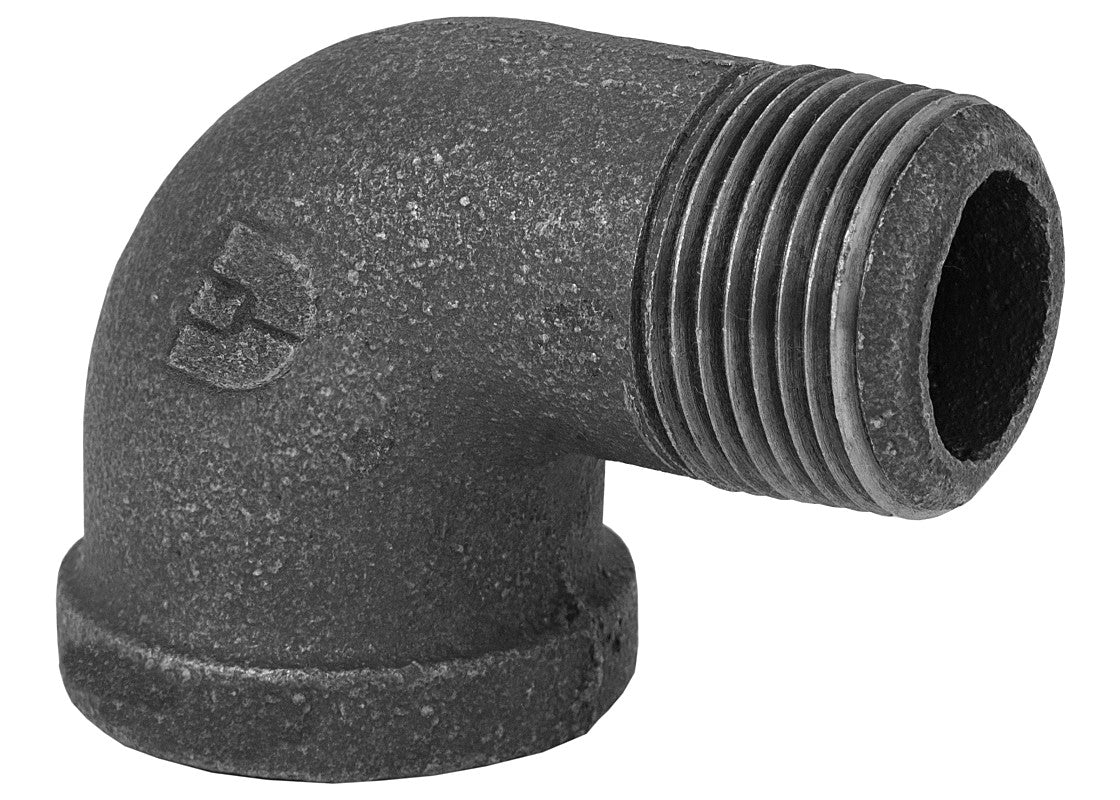

Bmi 35376 Malleable Iron Street 90 Degree Elbow 1 Inch

Product Description

The BMI 35376 is a 1-inch black malleable iron street 90-degree elbow designed for threaded pipe assemblies in plumbing, HVAC, and gas distribution systems. A street elbow features one male-threaded end and one female-threaded end, allowing it to connect directly to a fitting without requiring an additional pipe nipple between joints. This makes it a compact, efficient solution for tight-clearance directional changes in pipework. At 0.245 pounds, it is a lightweight but durable fitting suited for licensed plumbers, pipefitters, and HVAC technicians working on low- to medium-pressure piping systems.

This elbow is commonly used in residential and light commercial applications where a 90-degree directional change is needed in a threaded black iron pipe run. Typical installations include gas supply lines, steam systems, compressed air lines, and hydronic heating loops. The black finish indicates this fitting is not galvanized, making it appropriate for gas piping applications in accordance with applicable fuel gas codes. Plumbers and pipefitters select street elbows when space constraints make a standard elbow and nipple combination impractical.

Key Features

• Street configuration with one male NPT end and one female NPT end for direct fitting-to-fitting connection
• 1-inch nominal pipe size for standard threaded pipe systems
• Malleable iron construction provides strength and resistance to impact in threaded piping applications
• Black (non-galvanized) finish suitable for natural gas and propane supply piping
• 90-degree turn angle for right-angle directional changes in pipe runs
• Lightweight at 0.245 pounds, minimizing load on pipe supports

Compatibility

Designed as an OEM-style replacement and standard trade fitting for 1-inch NPT threaded black iron pipe systems in plumbing, gas, and HVAC applications.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or qualified HVAC technician in accordance with the International Fuel Gas Code (IFGC) or International Plumbing Code (IPC) as applicable. Shut off and depressurize the pipe system completely before disassembling any fittings. Apply an approved thread sealant or PTFE tape to the male threads before assembly, and tighten to a snug, leak-free connection without over-torquing malleable iron threads. Pressure-test all joints after installation per local code requirements.

Technical Specifications

• Pipe Size: 1 inch
• Fitting Type: Street 90 Degree Elbow
• Material: Malleable Iron
• Finish: Black
• Weight: 0.245 pounds
• Dimensions (L x W x H): 3.87 inches

Standard Information

• Brand: BMI
• Manufacturer Part Number: 35376
